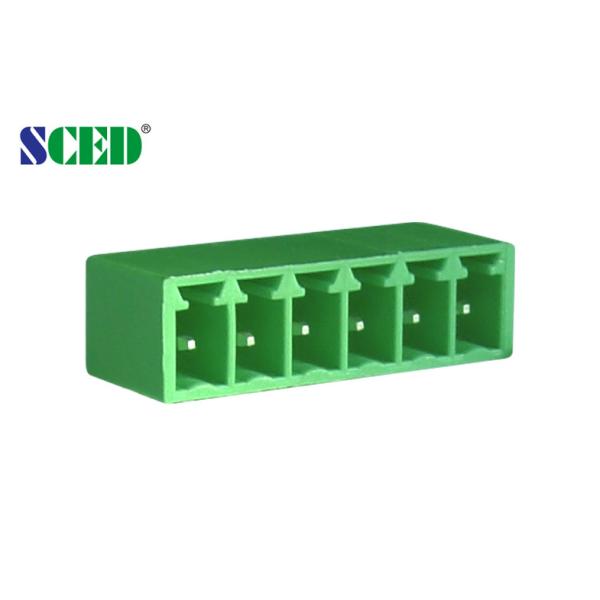

3.81mm 300V 8A Pluggable PCB Terminal Block 2P - 22P 45 Degree Wire Inlet
3.81mm 300V 8A Pluggable PCB Terminal Block 2P - 22P 45 Degree Wire Inlet
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TP381H-02
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Type :
Pluggable Terminal Block,Terminal Block Connectors, PCB Connectors
Pitch :
3.81mm
Number Of Contacts :
2P-22P
Rated Voltage :
300V
Rated Current :
8A
Color :
Green
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Wire Inlet :
45 degree wire inlet
Description

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

3.81mm 300V 8A Pluggable PCB Terminal Block 2P - 22P 45 Degree Wire Inlet

□Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels



This male socket match with female plug series: TP381P-00, TP381P-01, TP381P-02, TP381P-03, TP381P-04

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors



How to order:

3.81mm 300V 8A Pluggable PCB Terminal Block 2P - 22P 45 Degree Wire Inlet




Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 8

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage KV

2.5

2.5

2.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data

PCB Hole Diameter mm

1.2

Pin Dimension mm

0.8 x 0.8




3.81mm 300V 8A Pluggable PCB Terminal Block 2P - 22P 45 Degree Wire Inlet


Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
