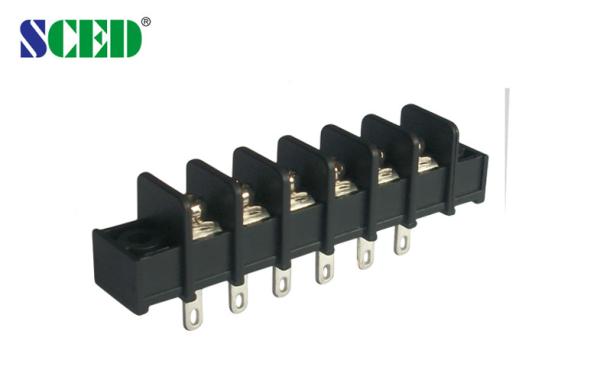

Nickel Plated Power Terminal Blocks Waterproof 300V 20A With High Voltage
Nickel Plated Power Terminal Blocks Waterproof 300V 20A With High Voltage
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL,CE,CQC
Model Number :
TB825-01F-D3
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Description

Nickel Plated Power Terminal Blocks Waterproof 300V 20A With High Voltage

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 20 300 / 10
Wire Range AWG 12-26 12-26
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 320 / 32 400 / 32 630 / 32
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 4
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ1.2x3.4
Stripping Length mm 6-7
Screw / Torque / lbf.in M3 / 5-7

Nickel Plated Power Terminal Blocks Waterproof 300V 20A With High Voltage

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Nickel Plated Power Terminal Blocks Waterproof 300V 20A With High Voltage

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc.

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Nickel Plated Power Terminal Blocks Waterproof 300V 20A With High Voltage
