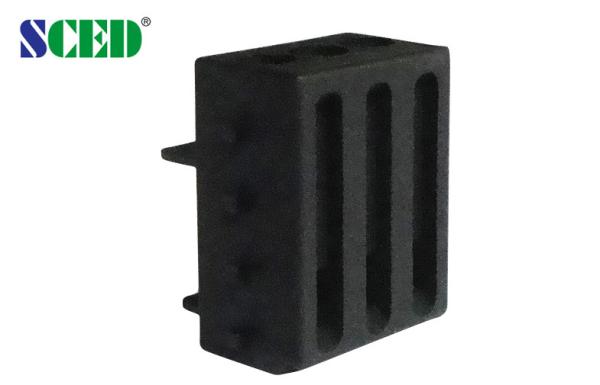

Pitch 6.2mm PCB Terminal Block Brass 300V 15A 3 Poles PA66 UL94-V0
Pitch 6.2mm PCB Terminal Block Brass 300V 15A 3 Poles PA66 UL94-V0
Specifications
Brand Name :
SCED
Model Number :
TJ508-15
Certification :
CE,UL,CUL,CQC,VDE etc.
Place of Origin :
Guangdong,China
MOQ :
500 Piece/Pieces
Price :
USD 0.047-0.094 per pole
Payment Terms :
T/T, L/C
Supply Ability :
1000000 Pole/Poles per Month
Delivery Time :
5-20 days
Packaging Details :
Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
Pitch :
6.2mm
Poles :
3 poles
Current :
15A
Volt :
300V
Clamp Cage :
Brass
Plastic :
PA66
Plating :
Nickel plated
Stripping Length :
7-8
Color :
Black
Inflammability Class :
UL94-V0
Description

Pitch 6.2mm PCB Terminal Block Brass 300V 15A 3 Poles PA66 UL94-V0

Detailed product Description:

Pitch 6.20mm, 300V 10A, 2P-24P, PCB Terminal blocks – Euro type Raising series

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Green. Other colors also available.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 15

Wire Range AWG

10-24

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

630 / 15

800 / 15

1000 / 15

Rated Surge Voltage KV

6

6

8

Rated Connecting Capacity mm2

4

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

φ1.4

Stripping Length mm

7-8

Screw / Torque / lbf.in

M3 / 4.4-5.3

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Pitch 6.2mm PCB Terminal Block Brass 300V 15A 3 Poles PA66 UL94-V0
