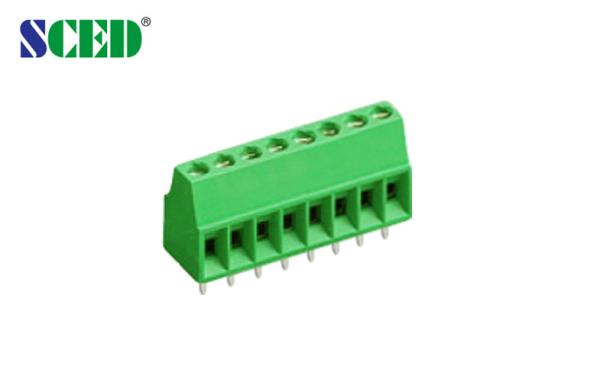

2.54mm PCB Terminal Blocks Screw Clamp Connection Nickel Plated 125v 6amp
2.54mm PCB Terminal Blocks Screw Clamp Connection Nickel Plated 125v 6amp
2.54mm PCB Terminal Blocks Screw Clamp Connection Nickel Plated 125v 6amp
2.54mm PCB Terminal Blocks Screw Clamp Connection Nickel Plated 125v 6amp
Specifications
Brand Name :
SCED
Model Number :
TJ254-02
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Packaging Details :
Standard Export Carton
Pitch :
2.54mm
Color :
Green
Poles :
2P, 3P Or Any poles
Wire range :
16-30awg
Voltage :
125v
Current :
6a
Description

2.54mm PCB Terminal Blocks Screw Clamp Connection Nickel Plated 125v 6amp

Quick Details:

Model: TJ254-02

Pitch:2.54mm
Poles: 2P, 3P Or Any poles

Rated Voltage / Current:125V/ 6A
Wire Range: 16－30AWG

Housing: PA66 / UL94, V-0
Clamp Cage: Brass
Terminal: Brass
Screw: M1.6/Steel
Torque: 1-1.3/ lbf.in
Stripping Length: 7mm

Description:

1. PCB Euro Terninal Blocks is widely used in industry and automatic control, power, frequency conversion and etc.

2. It is consisted of plastic housing, clamp cage, terminal and screw.

3. It can be stacked to be different poles via 2P and 3P,

4. Wire inlet Direction: 45 90 180degree

4. Materials: Plastic housing is PA66(UL94 V-0) Operating temperature: -40~+105 Clamp cage and terminal is high quality brass or copper screw is high-quality steel

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

125 / 6

Wire Range AWG

16-30

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

63 / 6

160 / 6

320 / 6

Rated Surge Voltage KV

1.5

1.5

2.5

Rated Connecting Capacity mm2

0.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

φ1.1

Stripping Length mm

4-5

Screw / Torque / lbf.in

M1.6 / 1.0-1.3

Application:

1. industry and automatic control,

2. power,

3. frequency conversion and etc.

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

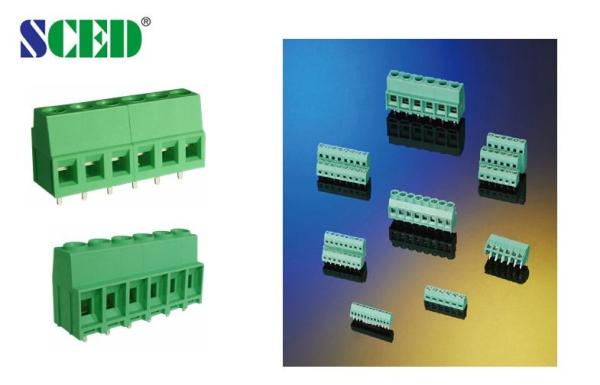

Drawing Photo:

2.54mm PCB Terminal Blocks Screw Clamp Connection Nickel Plated 125v 6amp


2.54mm PCB Terminal Blocks Screw Clamp Connection Nickel Plated 125v 6amp
