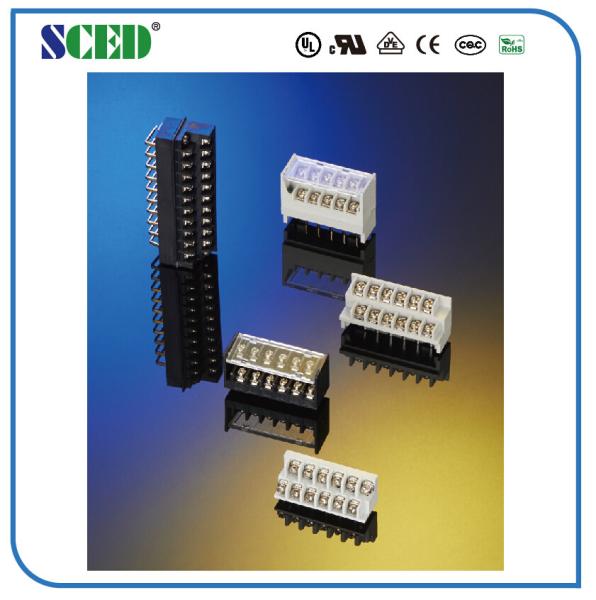

Power Supply barrier connector Double Gold Pins electrical terminal block connectors 600V 15A
Power Supply barrier connector Double Gold Pins electrical terminal block connectors 600V 15A
Power Supply barrier connector Double Gold Pins electrical terminal block connectors 600V 15A
Power Supply barrier connector Double Gold Pins electrical terminal block connectors 600V 15A
Specifications
Brand Name :
SCED
Model Number :
TB762-10
Certification :
UL,CUL,CQC,VDE,CE etc.
Place of Origin :
Guangdong China
MOQ :
500 Piece/Pieces
Payment Terms :
T/T, L/C
Supply Ability :
1000000 Pole/Poles per Month
Delivery Time :
5-20 days
Packaging Details :
Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Color :
Grey
Pitch :
7.62mm
Voltage :
300V
Current :
15A
Plastic :
PBT
Screw :
Steel
Insulation Resistance :
Above DC500V, 500MΩ
Contact Resistance :
Less than 8mΩ
Poles :
6-21 poles
Rated Surge Voltage :
No abnormal within 1 minute
Description

Power Supply barrier connector Double Gold Pins electrical terminal block connectors 600V 15A

Detailed product Description:

Pitch 7.62mm, 300V 15A, 4*6P-20*21P, Barrier Terminal Blocks, Power Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

□Single Level; ■Double levels; □Triple levels

Standard color: Grey. Other colors also available.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300/15

300/10

Wire Range AWG

14-22

14-22

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

φ1.5

Stripping Length mm

7-8

Screw / Torque / lbf.in

M 3 / 5-7

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
