Pitch 3.50mm Spring Screwless Terminal Block 300v 10a Electric Degree Terminal Block
Pitch 3.50mm Spring Screwless Terminal Block 300v 10a Electric Degree Terminal Block
Pitch 3.50mm Spring Screwless Terminal Block 300v 10a Electric Degree Terminal Block
Pitch 3.50mm Spring Screwless Terminal Block 300v 10a Electric Degree Terminal Block
Specifications
Brand Name :
SCED
Model Number :
TJ381-16
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Packaging Details :
Standard Export Carton
Type :
spring terminal block
Housing :
PA66
Wire range :
14-26 AWG
Voltage :
300V
Current :
10A
Terminal :
Brass
Description

Pitch 3.50mm Spring Screwless Terminal Block 300v 10a Electric Degree Terminal Block

Quick Details:

1. Multiple pitch: 2.54mm, 3.50mm,3.81mm,5.00mm,5.08mm,7.62mm
2. Diverse wire inlet direction
3. Compact structure
4. Simple operating
5. Strong vibration resistance

Spec.

Pitch 3.50mm

pushing button

color: grey & blue

spring clamp type

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300/10

300/10

Wire Range AWG

14-26(sol) 16-26(str)

14-26(sol) 16-26(str)

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

125 / 10

250 / 10

320 / 10

Rated Surge Voltage KV

2.5

2.5

2.5

Rated Connecting Capacity mm2

1.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Brass / Tin Plated

Other Data

PCB Hole Diameter mm

φ1.2

Stripping Length mm

8-9

Competitive Advantage:

1. We have Stable good quality with CE RoHS

2. Competitive price, We are factory.

3. Quickly response, When we receive your inquiry, we will reply you within 24 hours.

4. Full range products for selection, PCB Type, Barrier type, Screw Type, Panel Type, Feed through type.

5. Flexible to design the exact part per customers’ demand, We also support the OEM, ODM,

Applications:

Frequency Converters,

Server Site,

Electric Power,

Security, Military, Elevator, etc..

Drawing:

Pitch 3.50mm Spring Screwless Terminal Block 300v 10a Electric Degree Terminal Block

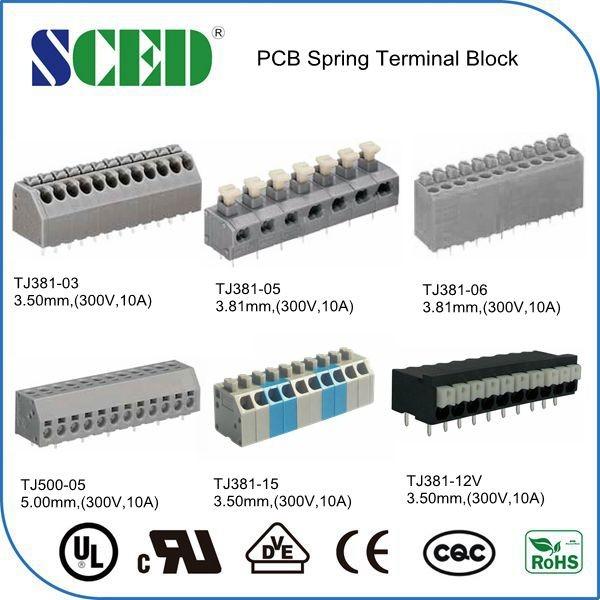

Other series
