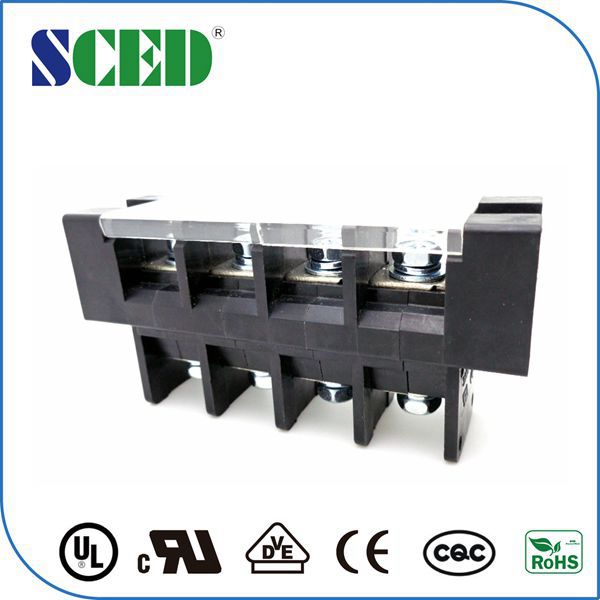

Pitch 21mm Feed Through Terminal Block Electric Terminal Connector
Pitch 21mm Feed Through Terminal Block Electric Terminal Connector
Pitch 21mm Feed Through Terminal Block Electric Terminal Connector
Pitch 21mm Feed Through Terminal Block Electric Terminal Connector
Specifications
Brand Name :
SCED
Model Number :
TD180-01-C
Certification :
CE ROHS
Place of Origin :
SHENZHEN CHINA
MOQ :
200
Payment Terms :
L/C, T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Type :
feed through
Pitch :
21.00mm
Screw :
steel
Torque :
20-22 Ibf.in
Conduction Board :
Brass
Insulation Material :
PBT
Stripping Length :
14-18
Description

Pitch 21mm Feed Through Terminal Block Electric Terminal Connector

1. Quick Detail:

The current : 180A

Voltage: 300V

Insulation Material: PBT

Inflammability Classl: UL94, V-0

2. Description:


1. It can realize a variety of ways to entered more into the line of, such as into line, up and down into
the line before and after, a into a,

2. You can configure the article identifies the short, protective cover plate, sheet in the attachment.

3. Current: 180A.

3. Applications:

1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting,

2. Industry Control, Automation,

3. Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..

4. Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 180

300 / 180

300 / 10

Wire Range AWG

20-1/0

20-1/0

4-20

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

630 / 180

800 / 180

1000 / 180

Rated Surge Voltage KV

6

6

6

Rated Connecting Capacity mm2

8

Material

Insulation Material / Inflammability Class

PBT/ UL94, V-0

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

14-18

Screw / Torque / lbf.in

M6 / 20-22

5. Feature Advantage:

1. Perforation terminal block is widely used in Industrial Control, Power Supply, Energy Saving, etc.

2. It can be stackable to be different poles, easy to be mounted on PCB or control board,

3. It has very good mechanical properties and electrical properties,

6. Competitive Advantage:

1.Good OEM & ODM business ability, 31 production lines meet your shipping requirement;

2. Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a high level of service;

3. Discount offered is based on qty.
