Plug - in Terminal Block Pitch 5.08mm Plug Male 300V 18A 2P - 20P Pluggable Terminal Block
Plug - in Terminal Block Pitch 5.08mm Plug Male 300V 18A 2P - 20P Pluggable Terminal Block
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TP508P-06F
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Description

Plug - in Terminal Block Pitch 5.08mm Plug Male 300V 18A 2P - 20P Pluggable Terminal Block

■Single Level; □Double Levels; □Triple Levels

This male socket match with female plugs’ series: TP508P-00F, TP508P-02F, TP508P-03F, TP508P-04F, TP508P-05F, TP508P-07F

Plug - in Terminal Block Pitch 5.08mm Plug Male 300V 18A 2P - 20P Pluggable Terminal Block

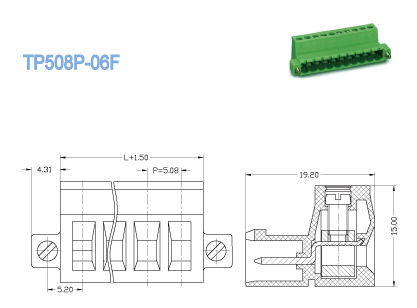

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/18 300/18
Wire Range AWG 12-30 12-30
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 18 320 / 18 630 / 18
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Contactor / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 7
Screw / Torque / lbf.in M3 / 4.4-5.3

Plug - in Terminal Block Pitch 5.08mm Plug Male 300V 18A 2P - 20P Pluggable Terminal Block

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Competitive Advantage:

  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
