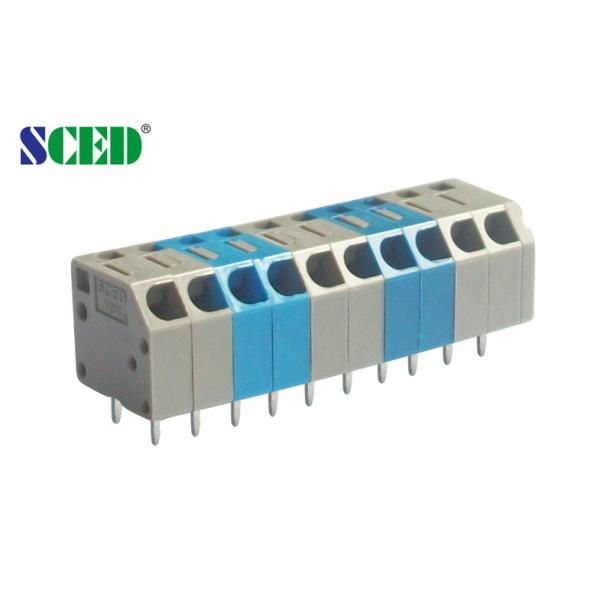

45 Degree Wire Inlet Spring Terminal Block Pitch 3.50mm 300v 2P - 28P
45 Degree Wire Inlet Spring Terminal Block Pitch 3.50mm 300v 2P - 28P
45 Degree Wire Inlet Spring Terminal Block Pitch 3.50mm 300v 2P - 28P
45 Degree Wire Inlet Spring Terminal Block Pitch 3.50mm 300v 2P - 28P
Specifications
Brand Name :
SCED
Model Number :
TJ381-15
Certification :
CE,UL,CUL,CQC,VDE etc.
Place of Origin :
Guangdong China
MOQ :
500 Piece/Pieces
Price :
USD 0.034-0.068 Per Pole
Payment Terms :
L/C, T/T
Supply Ability :
1000000 Pole/Poles per Month
Delivery Time :
5-20 days
Packaging Details :
Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Type :
Spring Type
Color :
Grey and blue
Pitch :
3.5mm
Current :
10A
Voltage :
300V
Plastic :
PA66
Terminal :
Brass
Plating :
Nickel plated
Rated Surge Voltage :
No abnormal within 1 minute
Insulation Resistance :
Above DC500V, 500MΩ
Description

45 Degree Wire Inlet Spring Type Terminal Block Pitch 3.50mm 300v 2P - 28P

Detailed product Description:

Pitch 3.50mm, 300V 10A, 2P-28P, Spring Terminal blocks, screwless terminal blocks

□Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Grey.

Other colors also available, such as Blue, Yellow, Black, Grey and White and so on.

Applications:

Our terminal blocks can be used in a lot of fileds, such as:

1.PCB, Frequency Converters, Server Site, Switch, Power Supply Electric Lighting

2. Industry Control, Automation, Rail Transportation, Communication, Electric Power

3.Security, Medicine Equipment, Military, Elevator and so on.

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300/10

300/10

Wire Range AWG

14-26(sol) 16-26(str)

14-26(sol) 16-26(str)

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

125 / 10

250 / 10

320 / 10

Rated Surge Voltage KV

2.5

2.5

2.5

Rated Connecting Capacity mm2

1.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Brass / Tin Plated

Other Data

PCB Hole Diameter mm

φ1.2

Stripping Length mm

8-9

Competitive Advantage:

1. Flexible to design the exact part per customers' demand

2. Stable good quality with competitive price

3. Quick response

4. more than 1000 models for selection.

45 Degree Wire Inlet Spring Terminal Block Pitch 3.50mm 300v 2P - 28P
