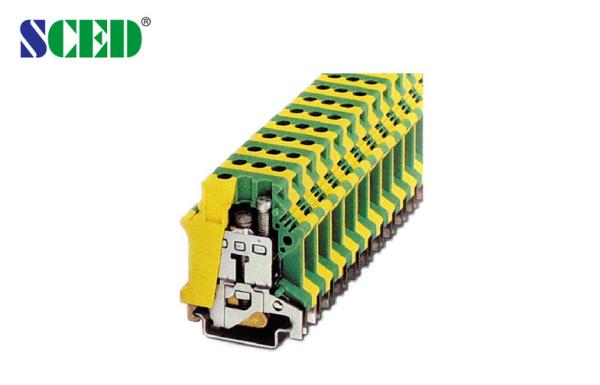

Custom 25mm Din Rail Terminal Blocks Width 12.2mm Right Angle Wire Inlet
Custom 25mm Din Rail Terminal Blocks Width 12.2mm Right Angle Wire Inlet
Specifications
Brand Name :
SCED
Model Number :
TR-KG16N
Certification :
CE,UL,CUL,CQC,VDE etc.
Place of Origin :
Guangdong,China
MOQ :
500 Piece/Pieces
Price :
USD 0.81-1.62 Per Pole
Payment Terms :
L/C, T/T
Supply Ability :
500 Piece/Pieces
Delivery Time :
5-20 days
Packaging Details :
Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Color :
Yellow and green
Terminal Width :
12.2mm
Wire Inlet :
Right Angle
Wire Range :
22-4 AWG
Rail Material :
Aluminum / Steel
Dimensions :
12.2/42.5mm
Wire Fixing Screw :
M4
Torque :
1.5-1.8 Nm
Stripping Length :
11mm
Type :
Din rail
Description

Custom 25mm 2 Uk Din Rail Terminals 12.2mm Right Angle Wire Inlet

Detailed product Description:

Terminal Width: 12.2mm, AWG:22-4, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Green & Yellow.

Other colors also available as per customer's request.

Applications:

For this series products, normally it will be used in Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator and so on.

Parameter and Drawing Specifications:

Description Color

Type

Terminal Green & Yellow

TR-KG16N

Zack Strip White

ZB10 SZS1.0x4.0

Rail Material

Aluminum / Steel

Dimensions

12.2/42.5

Height (U35: 7.5/U35: 15G 32) mm

54/61.5/59

Wire Fixing Screw / Torque Nm

M4 / 1.5-1.8

Center Fixing Screw / Torque Nm

M4 / 1.5-1.8

Stripping Length mm

11

Competitive Advantage:

1. 12 years of experience

2. 10 main series and more than 1000 models for selection

3. OEM and ODM service can be provided

4. good quality with competitive price

5. good service.
