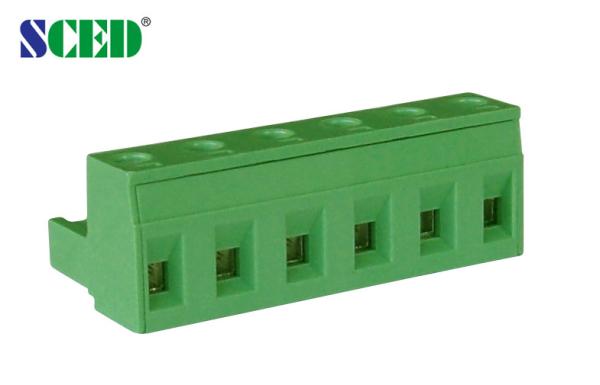

Single Level Plug In Terminal Block Brass Female Connectors Pitch 7.62mm
Single Level Plug In Terminal Block Brass Female Connectors Pitch 7.62mm
Single Level Plug In Terminal Block Brass Female Connectors Pitch 7.62mm
Single Level Plug In Terminal Block Brass Female Connectors Pitch 7.62mm
Specifications
Brand Name :
SCED
Model Number :
TP508P-76
Certification :
CE,UL
Place of Origin :
China
MOQ :
1000 Piece/Pieces
Price :
USD 0.06-0.12 PER Pole
Payment Terms :
T/T, L/C
Supply Ability :
1000000 Pole/Poles per Month
Delivery Time :
5-20 Working Days
Packaging Details :
Standard export packing carton, or according to customers demand.
Color :
Green
Pitch :
7.62mm
Type :
Plug in
Current :
8A
Voltage :
300V
Poles :
2-24 poles
Insulation Material :
PA66
Screw :
M2
Torque :
2-2.2 lbf.in
Clamp Cage :
Brass
Description

Green Color Plug In Terminal Block Brass Female Connectors Pitch 7.62mm

Detailed product Description:

Plug, Female, Pitch: 7.62mm, 300V 18A, 2P-16P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

This female plug match with male sockets’ series: TP508H-76, TP508H-76V, TP508H-77, TP508H-77V

Levels: ■Single Level

Standard color: Green.

Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Single Level Plug In Terminal Block Brass Female Connectors Pitch 7.62mm

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Industry Control, Automation, Communication, Electric Power, Security, Medical Equipment, Military and so on.

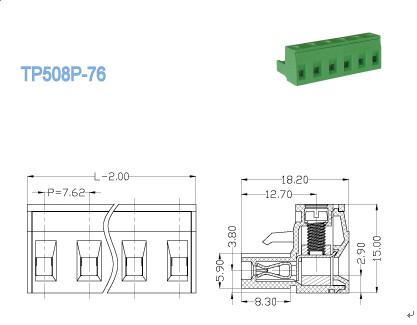

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 18 300 / 18
Wire Range AWG 12-30 12-30
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 400 / 18 630 / 18 1000 / 18
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Phosphor Bronze / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 7
Screw / Torque / lbf.in M3 / 4.4-5.3

Competitive Advantage:

  1. High quality
  2. Reasonable price
  3. Full range products for selection
  4. Flexible to design the exact part per customers’ demand

Single Level Plug In Terminal Block Brass Female Connectors Pitch 7.62mm
