LCP Gold Plated Black Color Pluggable Terminal Block With Right Angle 7.5mm 300V 16A
LCP Gold Plated Black Color Pluggable Terminal Block With Right Angle 7.5mm 300V 16A
LCP Gold Plated Black Color Pluggable Terminal Block With Right Angle 7.5mm 300V 16A
LCP Gold Plated Black Color Pluggable Terminal Block With Right Angle 7.5mm 300V 16A
Specifications
Brand Name :
SCED
Model Number :
TP750H-00V-4P-BK
Certification :
CE,UL
Place of Origin :
Suzhou, China
MOQ :
1000 Piece/Pieces
Price :
USD 0.018-0.045 Per Pole
Payment Terms :
T/T, L/C
Supply Ability :
1000000 Pole/Poles per Month
Delivery Time :
20-45 Working Days
Packaging Details :
Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Color :
Black
Voltage :
300V
Pitch :
7.5mm
Current :
16A
Poles :
4/6/7/9 poles
Terminal :
Copper
Inflammability Class :
UL94, V-0
Insulation Material :
LCP
Description

Black Color Pluggable Terminal Block With Right Angle 7.5mm 300V 16A

Detailed product Description:

Header, Male Sockets, Pitch: 7.5mm, 300V 16A, 4/6/7/9P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

This male header match with female plugs’ series: Contact Customer Service

Wire Inlet: ■Right angle wire inlet

Levels: ■Single Level

Standard color: Green.

Other colors also available, please refer to below How to Order and select the color you want.

How to order:

LCP Gold Plated Black Color Pluggable Terminal Block With Right Angle 7.5mm 300V 16A

Applications:

1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control 2. Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military and Elevator and so on.

Competitive Advantage:

  1. Full range products for selection
  2. Flexible to design the exact part per customers’ demand
  3. High quality but competitive price

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/16 300/16 300/10
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 320 / 16 630 / 16 800 / 16
Rated Surge Voltage KV 4 4 4
Material
Insulation Material / Inflammability Class LCP / UL94, V-0
Terminal / Plating Copper / Gold Plated
Other Data
PCB Hole Diameter mm φ1.4
Pin Dimension mm 0.7*0.9

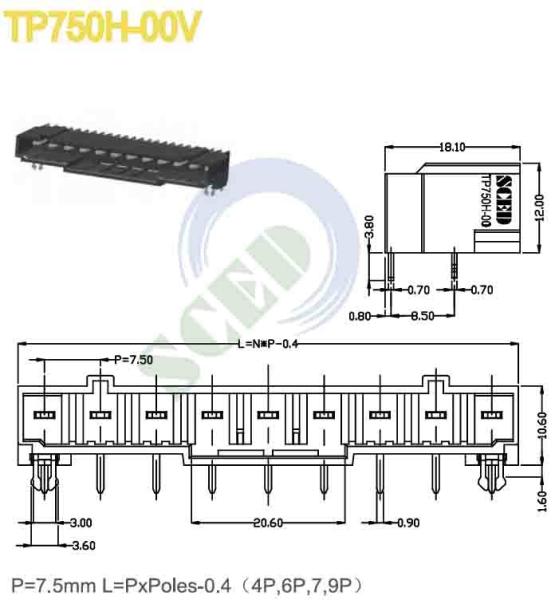

Drawing Photo


LCP Gold Plated Black Color Pluggable Terminal Block With Right Angle 7.5mm 300V 16A
