High Current Terminal Connector 600V 101A 21.80mm Any Poles Available Used In Industrial Control
High Current Terminal Connector 600V 101A 21.80mm Any Poles Available Used In Industrial Control
High Current Terminal Connector 600V 101A 21.80mm Any Poles Available Used In Industrial Control
High Current Terminal Connector 600V 101A 21.80mm Any Poles Available Used In Industrial Control
Specifications
Brand Name :
SCED
Model Number :
TR100-01-BCM0-N2
Certification :
UL, CE, CQC
Place of Origin :
Suzhou, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
20-45 working days
Packaging Details :
Packaging Details: Standard export packing carton, or according to customers demand.
Operating Temperature :
-40°C to 105°C
Connection Type :
Screw
Current :
101A
Wire Range :
2-20 AWG
Wire Connection :
Direct
Mounting Type :
DIN Rail
Wire Stripping Length :
10-12mm
Inflammability Class :
UL94, V-0
Number Of Contacts :
any poles available
Pitch :
21.80mm
Rated Voltage :
600V
Wire Size :
2-20 AWG
Rohs Compliant :
Yes
Description

High Current Terminal connector 600V 101A 21.80mm any poles available used in industrial control

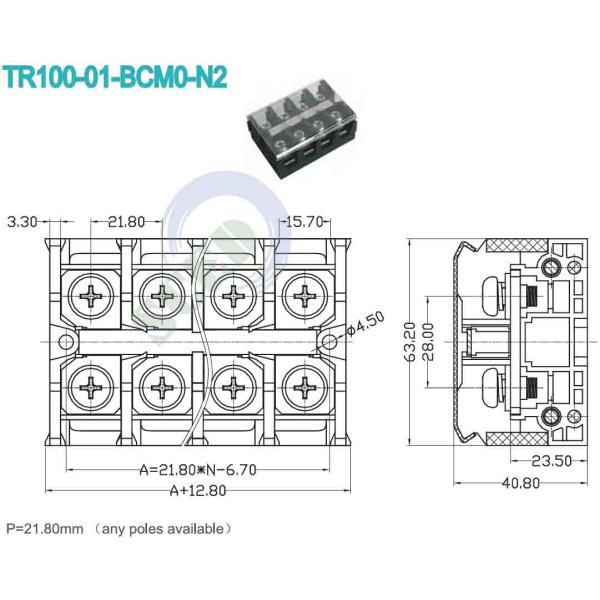

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 101 600 / 101
Wire Range AWG 2-20 2-20
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 /100 1000 / 100 1000 / 100
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 25
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 10-12
Screw Torque mm M6 / 18-22

High Current Terminal Connector 600V 101A 21.80mm Any Poles Available Used In Industrial Control

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

High Current Terminal Connector 600V 101A 21.80mm Any Poles Available Used In Industrial Control

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

High Current Terminal Connector 600V 101A 21.80mm Any Poles Available Used In Industrial Control
