7.62mm Plug In Terminal Block Electrical Single Level 300V 2-14 Poles Tin Plated
7.62mm Plug In Terminal Block Electrical Single Level 300V 2-14 Poles Tin Plated
7.62mm Plug In Terminal Block Electrical Single Level 300V 2-14 Poles Tin Plated
7.62mm Plug In Terminal Block Electrical Single Level 300V 2-14 Poles Tin Plated
Specifications
Brand Name :
SCED
Model Number :
TP508H-76F
Certification :
UL, CE
Place of Origin :
Suzhou, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
20-45 working days
Packaging Details :
Packaging Details: Standard export packing carton, or according to customers demand.
Wire Inlet :
Vertical wire inlet
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color :
Green
Number of Contacts :
2P-14P
Pitch :
7.62mm
Rated Current :
18A
Rated Voltage :
300V
Type :
Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks
Description

7.62mm Plug In Terminal Block Electrical Single Level 300V 2-14 Poles Tin Plated

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand


□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels
This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508P-07
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors


How to order:
7.62mm Plug In Terminal Block Electrical Single Level 300V 2-14 Poles Tin Plated



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

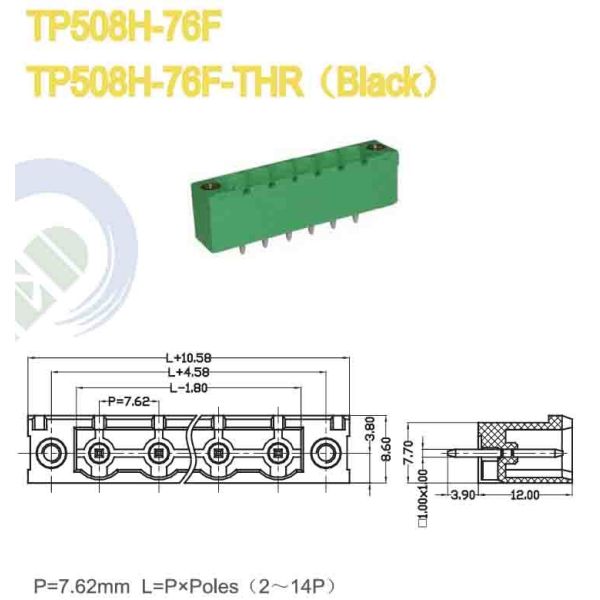

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 18

300 / 10

Wire Range AWG

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

400 / 18

630 / 18

1000 / 18

Rated Surge Voltage KV

6

6

6

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data

PCB Hole Diameter mm

φ1.4

PinDimension mm

1.0 x 1.0
