600V 50A Power Terminal Block Black PC Screw Clamp Barrier Strips Connector
600V 50A Power Terminal Block Black PC Screw Clamp Barrier Strips Connector
600V 50A Power Terminal Block Black PC Screw Clamp Barrier Strips Connector
600V 50A Power Terminal Block Black PC Screw Clamp Barrier Strips Connector
Specifications
Brand Name :
SCED
Model Number :
TR500-00-FaM0
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Type :
Power Terminal Block, PCB screw terminal blocks,Electrical terminal Blocks
Pitch :
60.00mm
Number Of Contacts :
Any Poles Available
Wire Range :
350-750kcmil
Rated Voltage :
600V
Rated Current :
500A
Color :
Black
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Description

600V 50A Power Terminal Block Black PC Screw Clamp Barrier Strips Connector

Detailed product Description:

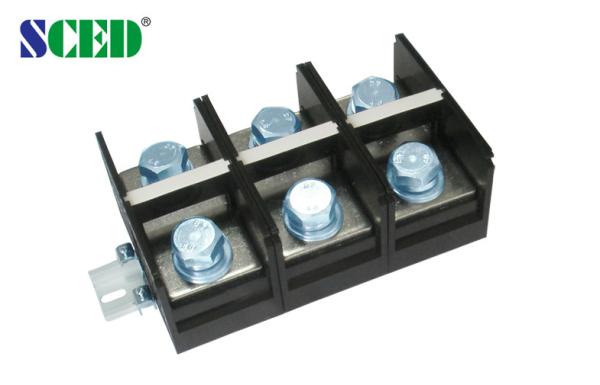

High Current Power Terminal Blocks Connectors Pitch 60.00mm 600V 500A any pole available
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:

600V 50A Power Terminal Block Black PC Screw Clamp Barrier Strips Connector

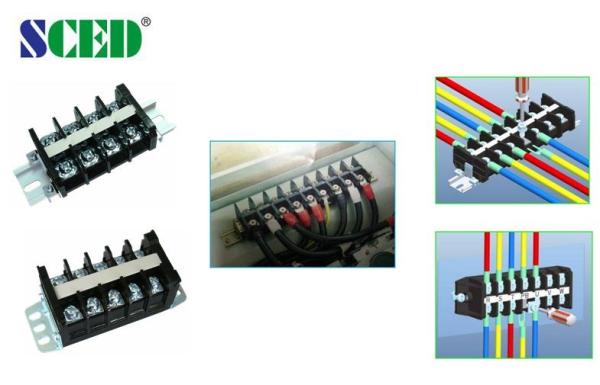

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

600 / 500

600 / 500

Wire Range AWG

350-750kcmil

350-750kcmil

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

1000 / 500

1000 / 500

1000 / 500

Rated Surge Voltage KV

10

10

10

Rated Connecting Capacity mm2

380

Material

Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

30-35

Screw / Torque / lbf.in

M12 / 200-213


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
