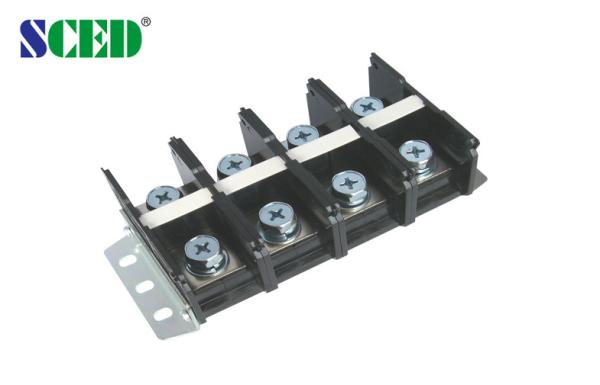

300A 600V High Current Terminal Connector 45mm Screw Mount Terminal Block
300A 600V High Current Terminal Connector 45mm Screw Mount Terminal Block
300A 600V High Current Terminal Connector 45mm Screw Mount Terminal Block
300A 600V High Current Terminal Connector 45mm Screw Mount Terminal Block
Specifications
Brand Name :
SCED
Model Number :
TR300-01-BM0
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
300pcs
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
500K poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Pitch :
45mm
Rated Voltage :
600V
Rated Current :
300A
Color :
Black
Number Of Contacts :
Any Poles Available
Wire Range :
4-350kcmil
Applications :
PCB,Frequency Converters, Server Site, Switch, etc.
Type :
High current terminal block
Description

300A 600V High Current Terminal Connector 45mm Screw Mount Terminal Block

■Single Level; □Double levels; □Triple levels

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

600 / 300

600 / 300

Wire Range AWG

4-350kcmil

4-350kcmil

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

800 / 300

1000 / 300

1000 / 300

Rated Surge Voltage KV

8

8

8

Rated Connecting Capacity mm2

150

Material

Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

19-21

Screw / Torque / lbf.in

M10 / 50-60

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand

Drawing Photo:

300A 600V High Current Terminal Connector 45mm Screw Mount Terminal Block

How to order:

300A 600V High Current Terminal Connector 45mm Screw Mount Terminal Block
