9.525mm Barrier Terminal Block 300V 20A 2 - 24P PBT Brass Screw Clamp Termin Connector
9.525mm Barrier Terminal Block 300V 20A 2 - 24P PBT Brass Screw Clamp Termin Connector
9.525mm Barrier Terminal Block 300V 20A 2 - 24P PBT Brass Screw Clamp Termin Connector
9.525mm Barrier Terminal Block 300V 20A 2 - 24P PBT Brass Screw Clamp Termin Connector
Specifications
Brand Name :
SCED
Model Number :
TB952-02
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Pitch :
9.525mm
Color :
Black
Rated Current :
20A
Rated Voltage :
300V
Poles :
2-24 P
Material :
PBT
Description

9.525mm Barrier Terminal Block 300V 20A 2 - 24P PBT Brass Screw Clamp Termin Connector


Parameter

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 20 300 / 10
Wire Range AWG 12-22 12-22
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 500 / 32 630 / 32 800 / 32
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 4
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ2.1
Stripping Length mm 8-9
Screw / Torque / lbf.in M 3.5 / 7-10



Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.


Applications:


PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Competitive Advantage:

Stable good quality

Competitive price

Quickly response

Full range products for selection

Flexible to design the exact part per customers’ demand

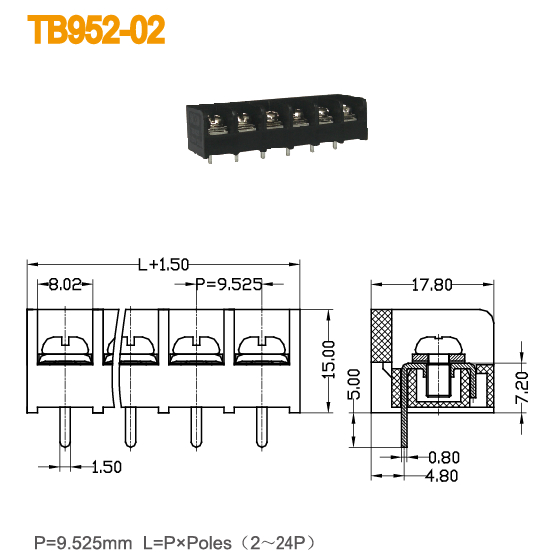

Drawing Photo

9.525mm Barrier Terminal Block 300V 20A 2 - 24P PBT Brass Screw Clamp Termin Connector
