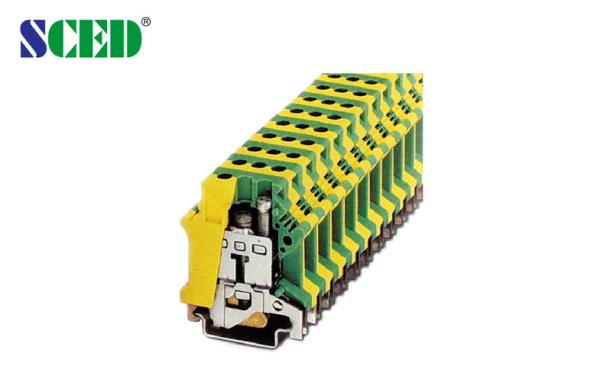

Din Rail Terminal Blocks , Compact Din Rail Mount Terminal Blocks
Din Rail Terminal Blocks , Compact Din Rail Mount Terminal Blocks
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TR-KG16N
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Type :
Rail Mounted Terminal Blocks, Electrical terminal Blocks, Terminal block connectors
Wire Range :
22-4
Color :
Grey
Applications :
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
Wire Inlet :
Right angle wire inlet
Terminal Width :
12.2mm
Description


How to order:

Din Rail Terminal Blocks , Compact Din Rail Mount Terminal Blocks


Detailed product Description:

Terminal Width: 12.2mm, AWG:22-4, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks


Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



Parameter and Drawing Specifications:

Description Color

Type

Terminal Grey

TR-35N

End Cover Grey

Fixed Bridge

FBI 2-15 Imax: 135A

Insertion Bridge

FBI 3-15 Imax:120A

Separating Plate

TS-K

Partition Plate

TP-TR-35(7.5mm thick)

Zack Strip White

ZB10

Screwdriver

SZS 1.0×6.5

Rail Material

aluminum

Dimensions mm

15.2/55/-

Height (U35: 7.5/U35: 15G 32) mm

58.5/51/59

Screw / Torque Nm

M6 / 3.2-3.7

Stripping Length mm

16

IEC Technical Data

Max. Load Current / Cross Section A / mm2

125 / 35

Rated Surge Voltage / Contamination Class KV / -

8 / 3

Surge Voltage Category

Ⅲ


Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
