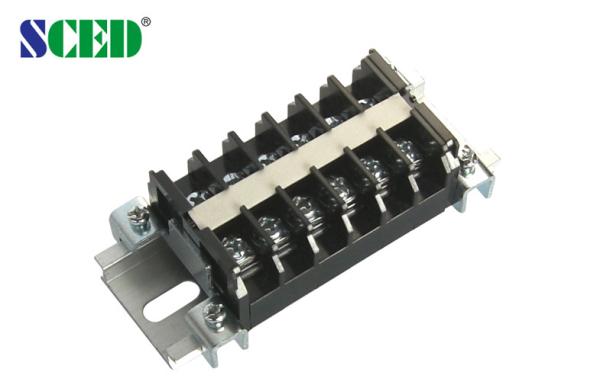

Single Level PCB Rail Mounted Terminal Blocks Connectors 10.50mm Pitch , 600V 15A
Single Level PCB Rail Mounted Terminal Blocks Connectors 10.50mm Pitch , 600V 15A
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TR15-00-FaM0
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Type :
Rail Mounted Terminal Blocks,Barrier terminal blocks, Power terminal blocks
Pitch :
10.50mm
Number Of Contacts :
Any Poles Available
Wire Range :
14-24
Rated Voltage :
600V
Rated Current :
15A
Color :
Black
Applications :
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
Description

Detailed product Description:
Single Level PCB Rail Mounted Terminal Blocks Connectors 10.50mm Pitch , 600V 15A any pole available, High Current Terminal connectors
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors

How to order:
Single Level PCB Rail Mounted Terminal Blocks Connectors 10.50mm Pitch , 600V 15A


Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Single Level PCB Rail Mounted Terminal Blocks Connectors 10.50mm Pitch , 600V 15A


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

600 / 15

600 / 15

Wire Range AWG

14-24

14-24

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

800 /15

1000 / 15

1000 / 15

Rated Surge Voltage KV

8

8

8

Rated Connecting Capacity mm2

1.25

Material

Insulation Material / Inflammability Class

PC / UL94, V-0

Conduction Board/ Plating

Brass /Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

8-9

Screw Torque mm

M 3.5 / 7-10


Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
