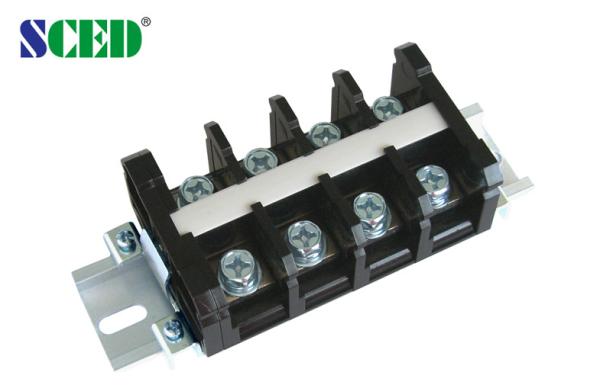

Pitch 19.00mm High Current Rail Mounted Terminal Block Connectors 600V 80A
Pitch 19.00mm High Current Rail Mounted Terminal Block Connectors 600V 80A
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TR80-01-FaM0
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Type :
Rail Mounted Terminal Blocks,Barrier terminal blocks, Power terminal blocks
Pitch :
19.00mm
Number Of Contacts :
Any Poles Available
Wire Range :
4-20
Rated Voltage :
600V
Rated Current :
80A
Color :
Black
Applications :
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
Description

Detailed product Description:

Pitch 19.00mm High Current Rail Mounted Terminal Block Connectors 600V 80A any pole available
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors

How to order:
Pitch 19.00mm High Current Rail Mounted Terminal Block Connectors 600V 80A

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

600 / 80

600 / 80

Wire Range AWG

4-20

4-20

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

800 /60

1000 / 60

1000 / 80

Rated Surge Voltage KV

8

8

8

Rated Connecting Capacity mm2

2

Material

Insulation Material / Inflammability Class

PC / UL94, V-0

Conduction Board/ Plating

Brass /Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

12-15

Screw Torque mm

M 6 / 18-22

Pitch 19.00mm High Current Rail Mounted Terminal Block Connectors 600V 80A


Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
