Female Plug-in / Pluggable Terminal Block Connector Pitch 5.00mm 2P-24P 300V 18A
Female Plug-in / Pluggable Terminal Block Connector Pitch 5.00mm 2P-24P 300V 18A
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TP500P-02
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Type :
Terminal Block Connector,Terminal Block Connectors, PCB Connectors
Pitch :
5.00mm
Number Of Contacts :
2P-24P
Wire Range :
12-30
Rated Voltage :
300V
Rated Current :
18A
Color :
Black
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Description

Detailed product Description:
Female Plug-in / Pluggable Terminal Block Connector Pitch 5.00mm 2P-24P 300V 18A
■Single Deck; □Double decks; □Triple decks

This female plug match with male pins’ series: TP500H-01, TP500H-02V

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable terminal blocks, Plug in terminal blocks, Electrical terminal Blocks



How to order:


Female Plug-in / Pluggable Terminal Block Connector Pitch 5.00mm 2P-24P 300V 18A
Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

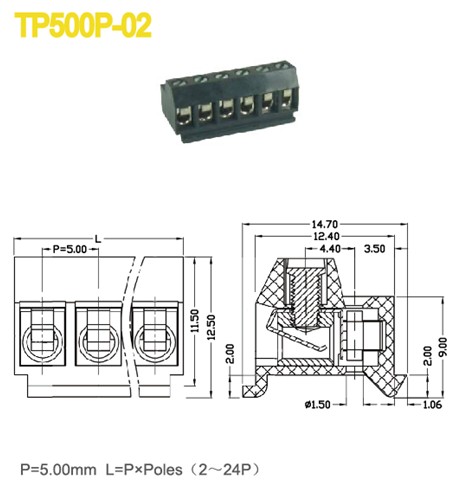

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 18

Wire Range AWG

12-30

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

250 / 10

320 / 10

630 / 10

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass /Nickel Plated

Terminal / Plating

Phosphor Bronze / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

7

Screw / Torque / lbf.in

M2.5 / 3-3.5

Female Plug-in / Pluggable Terminal Block Connector Pitch 5.00mm 2P-24P 300V 18A


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
