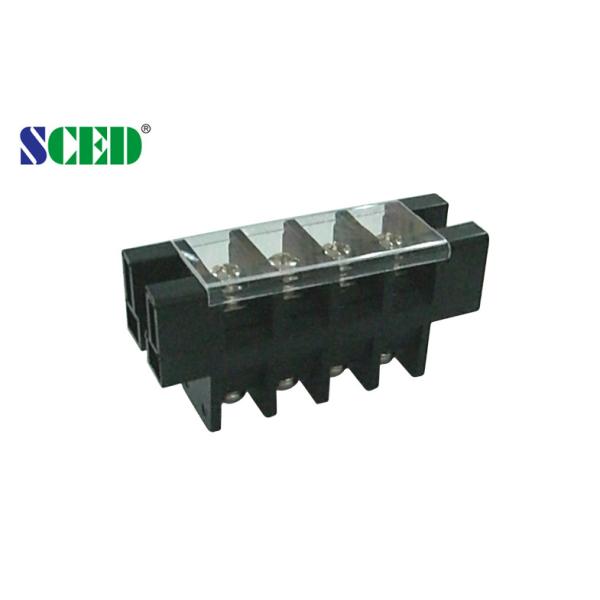

Electrical Feed Through Terminal Block Connector 600 Voltage 90A
Electrical Feed Through Terminal Block Connector 600 Voltage 90A
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TD90-00
MOQ :
200
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
100K poles each monthly
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color :
Black
Number of Contacts :
2P-12P
Pitch :
15.0mm
Rated Current :
90A
Rated Voltage :
600V
Type :
Feed Through Terminal Block,Feed through terminal connectors,Electrical terminal Blocks
Wire Range :
4-20
Description

Electrical Feed Through Terminal Block Connector 600 Voltage 90A

Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.

Feed through terminal blocks, Feed through terminal connectors, Penal mount terminal block, Electrical
terminal Blocks


How to order:
Electrical Feed Through Terminal Block Connector 600 Voltage 90A


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

600 / 90

600 / 90

Wire Range AWG

4-20

4-20

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

800 / 90

1000 / 90

1000 / 90

Rated Surge Voltage KV

8

8

8

Rated Connecting Capacity mm2

16

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Nickel Plated

Other Data

Stripping Length mm

10-12

Screw / Torque / lbf.in

M5 / 14-16



Electrical Feed Through Terminal Block Connector 600 Voltage 90A


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
