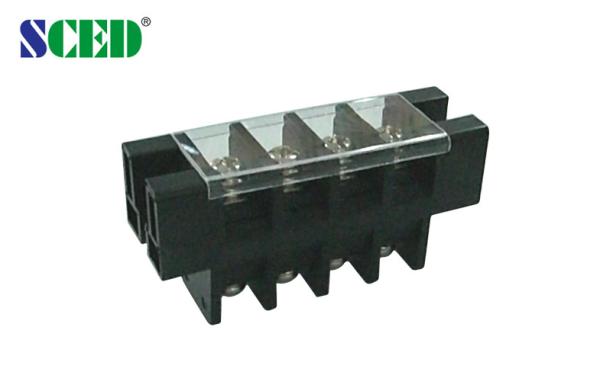

27.0mm Through Panel Power Terminal Blocks Connectors with Any Poles 600V 150A
27.0mm Through Panel Power Terminal Blocks Connectors with Any Poles 600V 150A
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TD150-01-C
MOQ :
200
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Type :
Power Terminal Block,PCB mount terminal blocks, PCB screw terminal blocks
Pitch :
27.00mm
Number Of Contacts :
Any Poles Available
Wire Range :
30-1/0
Rated Voltage :
600V
Rated Current :
150A
Color :
Black
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Description

Applications:


PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Detailed product Description:
27.0mm Through Panel Power Terminal Blocks Connectors with Any Poles 600V 150A

■Single Deck; □Double decks; □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Perforation Terminal Blocks, Through panel terminal blocks, Feed Through connectors


How to order:

27.0mm Through Panel Power Terminal Blocks Connectors with Any Poles 600V 150A



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

600 / 150

600 / 150

Wire Range AWG

30-1/0

30-1/0

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

800 / 150

1000 / 150

1000 / 150

Rated Surge Voltage KV

8

8

8

Rated Connecting Capacity mm2

50

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

16-18

Screw / Torque / lbf.in

M8 / 31-40

27.0mm Through Panel Power Terminal Blocks Connectors with Any Poles 600V 150A


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
