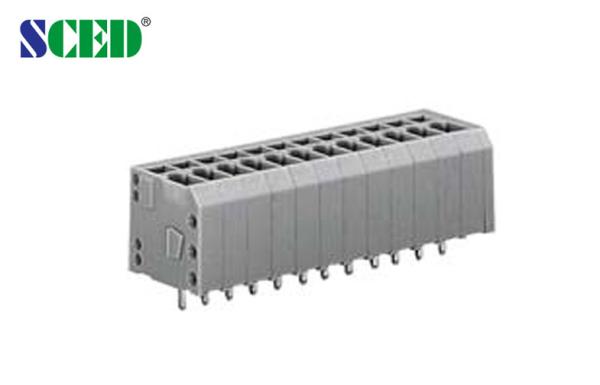

300 Volt 12A spring clamp Terminal Block , 5.08mm Screwless Terminal Blocks
300 Volt 12A spring clamp Terminal Block , 5.08mm Screwless Terminal Blocks
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TJ508-11
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Color :
Grey
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Number of Contacts :
2P-24P
Pitch :
5.08mm
Rated Current :
12A
Rated Voltage :
300V
Type :
Spring Terminal Block,Screwless terminal blocks, Electrical terminal Blocks
Wire Range :
12-28
Description

300 Volt 12A spring clamp Terminal Block , 5.08mm Screwless Terminal Blocks

□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

PCB spring terminal blocks, Spring Clamp terminal blocks, Screwless terminal blocks, Electrical terminal Blocks, terminal block factory

How to order:
300 Volt 12A spring clamp Terminal Block , 5.08mm Screwless Terminal Blocks

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300/12

Wire Range AWG

12-28

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

320 / 10

320 / 10

630 / 10

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Brass / Tin Plated

Other Data

PCB Hole Diameter mm

φ1.6

Stripping Length mm

8-9



300 Volt 12A spring clamp Terminal Block , 5.08mm Screwless Terminal Blocks

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
