Specifications
Brand Name :
CHN-TOP
Model Number :
ZT-180
Certification :
CE
Place of Origin :
CHINA,HUNAN
MOQ :
1SETS
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T
Supply Ability :
30 sets per month
Delivery Time :
20-60 working days
Packaging Details :
Wooden packing
Model No. :
ZT-180
Linear Slide :
SCHNEEBERGER
Reducer :
YASKAWA
Axises :
5 Axis
Description

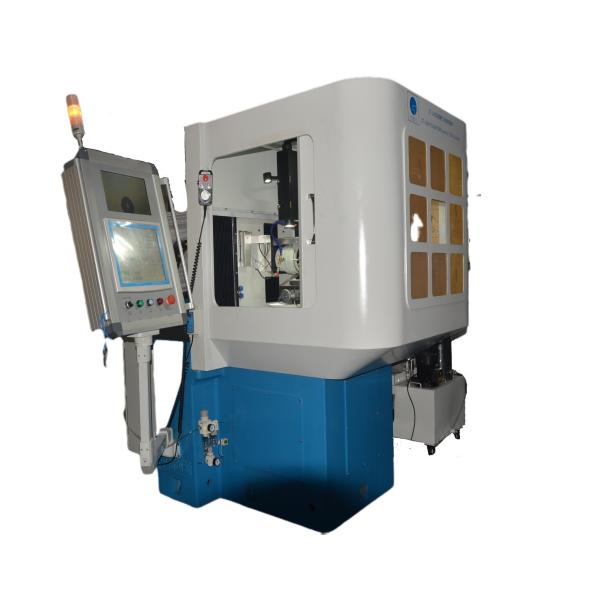

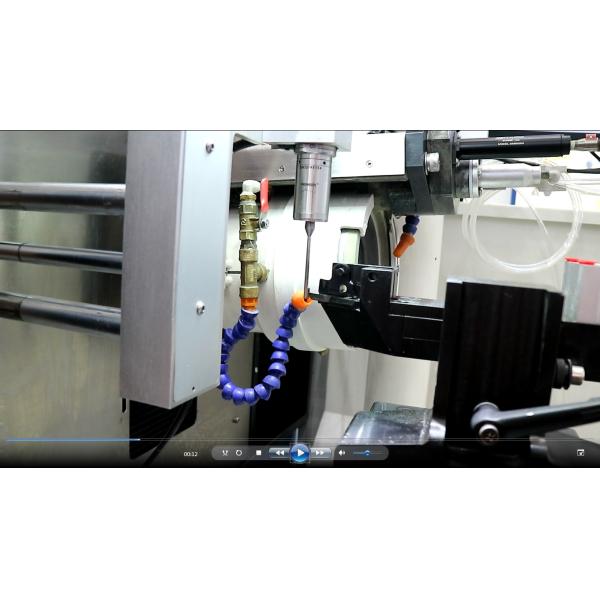

CNC GRINDING MACHINE FOR PCBN TOOLS PCD GRINDING MACHINE WITH CROSS TABLE AND CNC CONTROL SYSTEM

ZT-180 CNC Grinding machine is a 5 axis CNC machine which suitable for PCD PCBN diamont tools grinding

1. Self R&D software to make sure the flexbility of the grinding process

2. It have the software storage programm

3. The rotary holder can opitional

4. JAPAN YASKAWA reducer

Online System CNC PCD Grinding Machine High Accuracy For PCD PCBN Tools

Features

  • All machine body and cast accessories is 18 months natural ageing
  • SCHNEEBERGER heavy duty &precision linear slide guide for its accuracy and life
  • Swing mechanism utilizing ball-screw by a servo motor, smoother, more stable durable
  • Use advanced technical CNC control system, 5 axis control, two –axis CNC machining
  • The whole pneumatic system use JAPAN SMC brand, to get rapid feed and infeed
  • Linear grating and angle encoder of this model is FAGOR, make sure the precision indication.
  • Camera with LCD monitor and precision scale for easy set up& inspection during grinding.
  • LCD monitor scope with zoom system for adjustable from 7- 45 magnification even 0.05 radius can be grinding and inspection.

TECHNICAL PARAMETERS

1. Spindle and Grinding Wheel

Diameter of Grinding wheel 6A2 150*40*40
Spindle Power 2.2KW
Spindle Speed 0-4200RPM adjustable
Grinding wheel Inclination -13°-+24°
Grinding Pressure 0-450N adjustable

2. Grind Wheel Oscillation( X axis)

Grinding wheel Height Adjustment 140mm
Grinding wheel Oscillation Frequency 0-45/min adjustable
Grinding wheel Oscillation Distance 0-70mm adjustable
Grinding wheel Oscillation Travel Range 400mm

3. CCD Monitor System

Max manification times 70 times
CCD measuring system Online system
Monitor 17 inch monitor

Model

 ZT-180
Tip Radius 0-100mm
Grinding Pressure 0-450N adjustable
Spindle Speed 0-4200RPM adjustable
Grinding wheel size 150*40*40mm (D*H*T)
Grinding wheel oscillation frequency 0-45/min adjustable
Grinding wheel oscillation distance

0-70mm adjustable
Grinding wheel height adjustment 140mm
Grinding wheel stroke range 400mm
Grinding wheel inclination -13°-+24°
Cross table swiveling angle 0-270°
Size of cross table 210*160mm with 4 T slots
Workable infeed hand wheel division 0.001mm/ 1 division
Spindle Power 2.2KW
Dimension 1850*2200*1650mm( L*H*W)

Online System CNC PCD Grinding Machine High Accuracy For PCD PCBN Tools

Online System CNC PCD Grinding Machine High Accuracy For PCD PCBN Tools

Online System CNC PCD Grinding Machine High Accuracy For PCD PCBN Tools

Grinding Samples

Online System CNC PCD Grinding Machine High Accuracy For PCD PCBN Tools

Optional Accessories

Online System CNC PCD Grinding Machine High Accuracy For PCD PCBN Tools

Factory View

Online System CNC PCD Grinding Machine High Accuracy For PCD PCBN Tools

Online System CNC PCD Grinding Machine High Accuracy For PCD PCBN Tools

Online System CNC PCD Grinding Machine High Accuracy For PCD PCBN Tools

CHN-TOP is the company offer comprehensive solutions for diamond tools making

Machines: PCD/PCBN diamond grinding machine, Vacuum brazing machine, laser cutting machine,
chip breaker machines, laser engraving machine and polishing machines
Material: World famous PCD/ PCBN blanks , such as ILJIN, Element six, Hypersion, Adico, CHN-TOP
CTSTC, SF with competive price
Machining service: Cutting for segements, brazing service for MD/PDC cutter, PCBN tools,
Notching service for tools, chip breaker machining service and grinding service
