LASER ENGRAVING MACHINE FOR CHIP BREAKER CNC FIBER LASER ENGRAVING MACHINE LASER CUTTING MACHINE FOR PCD PCBN TOOLS

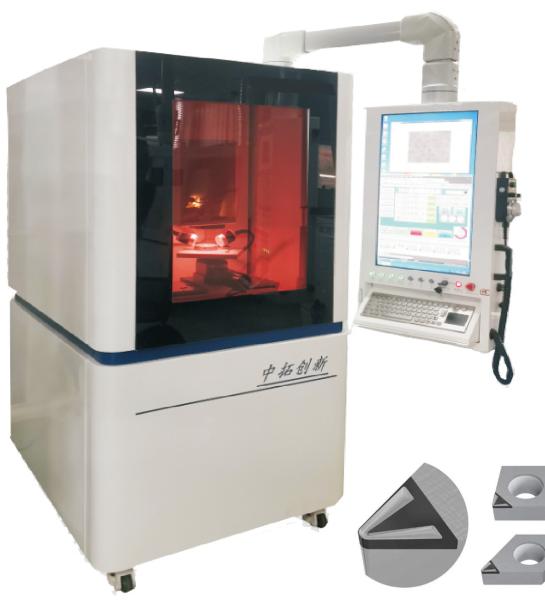

ZT-JGDK26 Ultra-hard tools’ laser engraving machine is mainly used for precision chip breaker and positioned hole machining of ultra-hard tools (PCD, PCBN, SOLID CBN, etc.)

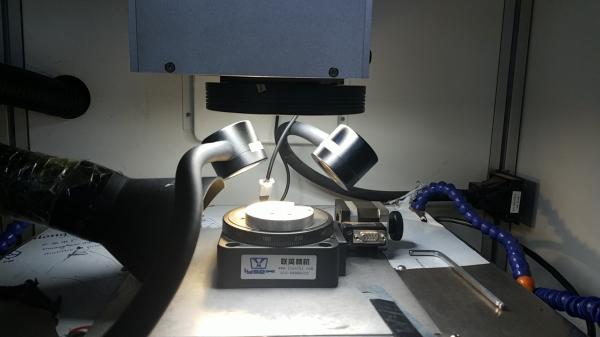

Components: FIBER LASER, COAXIAL MONITORING SYSTEM, PRECISION working table and CNC system

Design Features

• CCD Monitorning system , more accurate positioned
• German orginal laser source, more stable performance
• One button operation interface, more simple operation
• Cutting efficiency:1-10um per layer
• Max cutting thickness: 1mm
• 24 hours working, no consumables, laser maintenance free

Technical Parameters:

1.Main Components:Laser

2.Main Components:Monitor system

Application

FAQ
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and service, we have our own R&D

team and production workshop. We can develop our customers' unique products according to their needs.

Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.

Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service

according to the needs of customers, and one-on-one service to solve customers' worries.

Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement with international big brands,

customers do not need to worry about genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank, customers can choose goods according

to different needs, we also have self-developed domestic PCD with high quality, the price is very competitive.

Q: How about the cutting thickness and width of Laser cutting machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of 4-5mm, double-sided cutting maximum

thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
