Product Description:

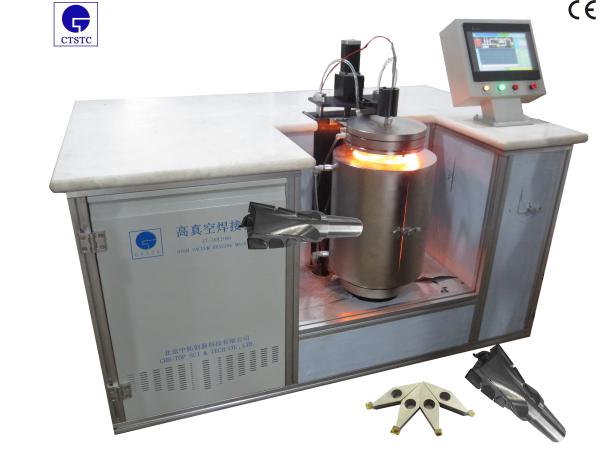

The Vacuum Brazing Machine operates in four stages: cleaning, fixing flux, drying at the temperature of 200℃ for 30 minutes, and brazing. It is equipped with a powerful vacuum pump to ensure that the brazing process is completed without any air contamination. The machine is designed to handle brazing of various materials, including tungsten carbide, diamond, and ceramic, among others.

The Vacuum Brazing Machine is powered by a 380V-3Phases-5Wires/20KW power supply, making it energy-efficient and reliable. With its automatic operation mode, the machine is easy to use, and it allows for efficient and precise brazing of inserts. The machine's high-quality construction ensures that it is durable and can withstand the rigors of industrial use.

The Vacuum Brazing Machine is an ideal choice for manufacturers who require precise and efficient brazing of inserts. Its ability to handle various materials, including tungsten carbide and diamond, makes it a versatile and valuable addition to any manufacturing operation. The machine's automatic operation mode ensures that the brazing process is completed quickly and accurately, minimizing the risk of errors and improving productivity. With its powerful vacuum pump and energy-efficient design, the Vacuum Brazing Machine is a reliable and cost-effective choice for manufacturers looking to improve their brazing processes.

Features:

• Product Name: Vacuum Brazing Machine
• Operation Mode: Automatic
• Guarantee: 1 Year
• Max Vacuum Rate: 10^-2 Pa
• Application: PCD/PCBN Inserts Brazing
• Power Supply: 380V-3Phases-5Wires/20KW

Applications:

The Vacuum Brazing Machine is equipped with 18pcs Halogen Tubes as the heating source. It has a brazing capability of CNGA1204 Appr. 600pcs/cycle and weighs around 600kg. The maximum temperature it can reach is 950°.

The Vacuum Brazing Machine is specifically designed for vacuum brazing of PCD/PCBN tools. It can be used for different applications like brazing of PCD/PCBN inserts, saw blades, milling cutters, reamers, and other tools. The Vacuum Brazing Machine processes four steps for brazing, including cleaning, fixing flux, drying at the temperature of 200℃ for 30mins, and brazing.

The Vacuum Brazing Machine is suitable for various scenarios, such as PCD/PCBN tools manufacturing, repair, and maintenance. It is ideal for industries like automotive, aerospace, mining, and construction. The Vacuum Brazing Machine is easy to operate and has a high working efficiency, which can save time and cost for the users.

In summary, CTSTC ZT-ZKHJ280 Vacuum Brazing Machine is a reliable and efficient solution for PCD/PCBN tools vacuum brazing. With its advanced technology and high-quality components, it can deliver consistent results and meet the demands of different industries.

Customization:

Our Vacuum Brazing Device is equipped with an automatic operation mode, making it easy and convenient to use. The chamber is made of high-quality Quartz Glass Tube, ensuring durability and precision in every use. With water cooling and a weight of 600kg, this machine is perfect for heavy-duty tasks.

With a maximum vacuum rate of 10^-2 Pa, our Vacuum Brazing Machine is the ideal solution for all your brazing needs. The price is negotiable, and the machine comes packaged in a sturdy plywood box for easy transport. Delivery time is typically 45-60 days, and we offer flexible payment terms including TT, LC, and Western Union.

Packing and Shipping:

Product Packaging:

The vacuum brazing machine will be securely packaged in a wooden crate to ensure safe transportation. The machine will be wrapped in protective materials to prevent any damage during shipping.

Shipping:

We offer worldwide shipping for the vacuum brazing machine. Shipping fees will vary depending on the destination and shipping method selected. Please contact us to receive a shipping quote and estimated delivery time.
