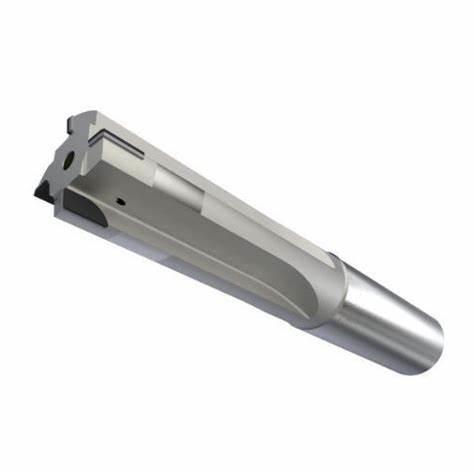

Silver Color PCD Drill Bit HRC45 / 50 / 55 / 60 For Plastic / Aluminum
Silver Color PCD Drill Bit HRC45 / 50 / 55 / 60 For Plastic / Aluminum
Specifications
Brand Name :
rich cutting tool
Model Number :
PCD Diamond Tools
Certification :
CE, ISO
Place of Origin :
china
MOQ :
Negotiable
Price :
negotation
Payment Terms :
T/T
Supply Ability :
50 EA days
Delivery Time :
10~30 work days
Packaging Details :
carton
Name :
PCD Diamond Tools
Use :
PCD Tipped Drills
Material :
PCD
Diameter :
25~430 mm Core drill bits
Color :
As requested
Hrc :
45/50/55/60
Feature :
High Hardness
Process :
Casting
Description

High Hardness PCD Diamond Tools / PCD Tipped Drills 25~430 Mm Diameter

PCD Diamond Tools Introduction

PCD End Mills for cutting plastics, aluminum and al-alloys
1. pcd step end mills with Multi- tips.
2. Application For plastics, aluminum, al-alloys, carbon, ceramics and every kind of non-ferrous materials

3. Straight flutes end mill with PCD blade

PCD Diamond Tools Parameters

PCD Recommended Cutting Condition
Work piece Cutting Speed Depth of Cut Feed Rate
(m/min) (mm) (mm/rev)
Aluminum(5~8% SI ) 350~1600 0.05~2.50 0.10~0.40
Aluminum(8~12% SI ) 350~1300 0.05~2.50 0.10~0.40
Aluminum(14~18% SI ) 160~800 0.05~2.50 0.05~0.25
Copper 350~1000 0.15~2.50 0.05~0.20
Sintered Carbid 15~25 0.05~0.60 0.10~0.20
Glass Fiber 100~800 0.15~0.50 0.03~0.25
Carbon 160~700 0.15~2.50 0.15~0.40
High Aluminum 70~250 0.05~1.50 0.03~0.15
Ceramics
Wood 1000-2500 0.2~5.0 010~0.50

Quality Control:

1. Strict raw material selection to guarantee impurity below 200ppm; the binder’s purity over 99.5%.

2. Advanced blending techniques to ensure thorough & even blending of diamond with binder.

3. Scientific formula & synthesis procedures. We can also adjust formula & procedures as per customers’ requirements for the most suitable products.

4. Strict control of other auxiliary materials to guarantee precise dimensions & best quality
