Halnn RNEN090400 CBN Turning Tools Full Form Face Milling Engine Block
Halnn RNEN090400 CBN Turning Tools Full Form Face Milling Engine Block
Halnn RNEN090400 CBN Turning Tools Full Form Face Milling Engine Block
Halnn RNEN090400 CBN Turning Tools Full Form Face Milling Engine Block
Halnn RNEN090400 CBN Turning Tools Full Form Face Milling Engine Block
Halnn RNEN090400 CBN Turning Tools Full Form Face Milling Engine Block
Specifications
Brand Name :
Halnn
Model Number :
RNEN
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable ( About 10-30 Usd/ Piece)
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
100000 pcs per month
Delivery Time :
3~15 working days
Packaging Details :
10 pcs in one plastic box inside, carbon box outside
Mnchining Process :
Face Milling
Dimension :
Customter-made
Application :
Engine Block
Origin Country :
Henan,China
Mnchining Material :
Cast Iron
Brade :
Halnn Tools
Insert Garde :
BNK30 RNEN090400
Body :
Tungsten Carbide
Description

Face Milling Gray Cast Iron Engine Block With BNK30 RNEN090400 CBN Turning Tools full form from Halnn

1. Halnn Tools BNK30 RNEN090400 CBN Cutting Tool full form face milling Cast iron Engine Block

For the automotives, engine is the most important component. With the Increasing competition, high speed milling the engine already become very important in this industry. And it is important for reducing the costs of each parts.

In modern times, most manufacturers use CNC lathe instead of common lathe, and the engine require high on the surface quality and the precision. So choose the right cutting tools become very important for milling, boring and turning process.

2. Why we Choose Halnn Tools BNK30 RNEN090400 CBN Cutting Tool full form face milling Cast iron Engine Block ?

In order to meet the requirements of the automotive components industry,Halnn superhard, the predecessor of China superhard cutting tools, has researched so many cbn grades for machining engine, it not only can realize high speed cutting, improve the working efficiency, but also will guarantee high surface roughness and long tool life.

When milling engine End Surface, we usually use Halnn Superhard BN-S300, which belongs to solid cbn insert, it has excellent cutting tips, and the tip has high strength. In the process of milling engine with high cutting speed, it can obtain surface roughness Ra1.6.

For boring process, we recommend BNK30 and BN-K20 process, which is brazing pcbn insert. Comparing with common pcbn insert, it has more cutting edges, and perform stable. They have been widely used in engine industry.

3.BNK30 Solid CBN Insert Characteristics

Insert Grade

 Suited Materials Machining Type Typical Application
BN-S300 Gray Cast Iron Roughing, Finishing

Brake Disc, Gearbox, Cylinder Liner,Brake Drum, Cast Iron Engine,
BN-K20 Semi-Finishing, Finishing

Brake Disc, Brake Drum,

Cast Iron Engine,Gearbox
BNK30

Cast Gray Iron,

Iron based alloy
BN-K10

Cast Gray Iron,

Powder Metallurgy

 Finishing

Brake Disc,Powder Metallurgy Parts,

Valve seat ring, Engine Cylinder bore

4.Detailed Data of RNEN Full form CBN inserts

Halnn RNEN090400 CBN Turning Tools Full Form Face Milling Engine Block
Type Dimension Grades
L(mm) φI.C(mm) S(mm) r(mm) BN-S200 BN-S30 BNK30
RNEN090400 9 9.525 3.18 ● ● ◎
RNEN090300 9 9.525 4.76 ● ● ◎
RNEN120700 12 12.7 7.94 ● ● ◎

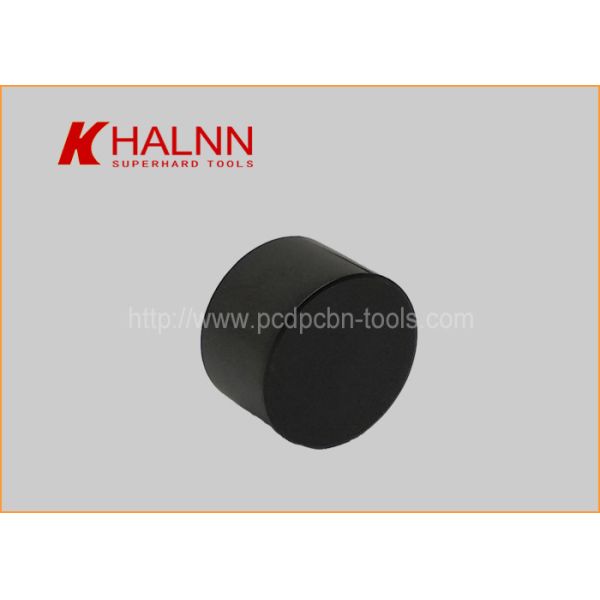

5.Pictures of Halnn Tools Solid CBN inserts

Halnn RNEN090400 CBN Turning Tools Full Form Face Milling Engine Block

6.Application Case

The application case of Halnn Tools CBN insertS BN-S300 milling Engine block

Machining Materials: Gray Cast Iron

Process: Finishing Process

Insert Model: BNK30 RNEN090400

Cutting Data: Vc=1700m/min, Fz=0.12mm/r,ap=0.3mm

Machining Process: Dry Cutting
Insert Materials Vc(m/min) Tool Life(pieces/blade) Cutting Fluid
BN-S300 3670 85 No
Imported CBN 3670 80 No

7.Our service

Pre-Sales Service After-sales Service

l) Prompt reply and 24 hours online,professional team to provide best price and quality product.

l) Same testing support

l ) Every batch of products will be tested to ensure its quality.

l) The real-time logistics information monitoring

l ) Any questions about the product can be consulted at any time.

l) Product with any problem can return.

8.Our Certificate

Halnn RNEN090400 CBN Turning Tools Full Form Face Milling Engine Block
