BN-H10 RNGN0903 PCBN Inserts Semi - Interrupt machining Wind Power Bearings 42CrMo4
BN-H10 RNGN0903 PCBN Inserts Semi - Interrupt machining Wind Power Bearings 42CrMo4
BN-H10 RNGN0903 PCBN Inserts Semi - Interrupt machining Wind Power Bearings 42CrMo4
BN-H10 RNGN0903 PCBN Inserts Semi - Interrupt machining Wind Power Bearings 42CrMo4
BN-H10 RNGN0903 PCBN Inserts Semi - Interrupt machining Wind Power Bearings 42CrMo4
BN-H10 RNGN0903 PCBN Inserts Semi - Interrupt machining Wind Power Bearings 42CrMo4
Specifications
Brand Name :
Halnn
Model Number :
RNGN09030/RNGN0904
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pieces
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
5~15 working days
Packaging Details :
10 pcs in one Plastic box inside, carton box outside
Materials :
Polycrystalline Cubic Boron Nitride
Suited Condition :
Semi-Interrupt Turning
Brand :
Halnn
Halnn Grade :
BN-H10
Models :
RNGN0903/RNMN0903
Origin Country :
China
Description

PCBN Inserts BN-H10 RNGN0903 Semi-Interrupt machining Wind Power Bearings 42CrMo4

1. About PCBN Inserts for finish turning hardened steel

Insert Materials

Coating

 Suited Materials Machining Type Application

BN-H05

BN-H05 C25

With

/Without Coating

Hardened Steel, High strength cast iron

 Continuous

Gears,Gear Shaft, Bearings,wind power bearings

BN-H10

BN-H10 C25

 Semi-Interrupt

BN-H21

BN-H21 C25

 Heavy Interrupt

2. BN-H10 PCBN Inserts Cutting Condition

Insert Materials CBN Content Binder

Granularity

(μm)

 Hardness (HV)

Machining Type
BN-H05 45% TiN ≤1 2700~2800

Continuous Turning
BN-H05 C25
BN-H10 50% Al,TiN ≤1 2700~2800

Continuous Turning~

Semi-Interrupt Turning

BN-H10 C25
BN-H21 60% Al,TiN 1~2 2600~2800

Semi-Interrupt Turning~

Heavy Interrupt Turning
BN-H21 C25

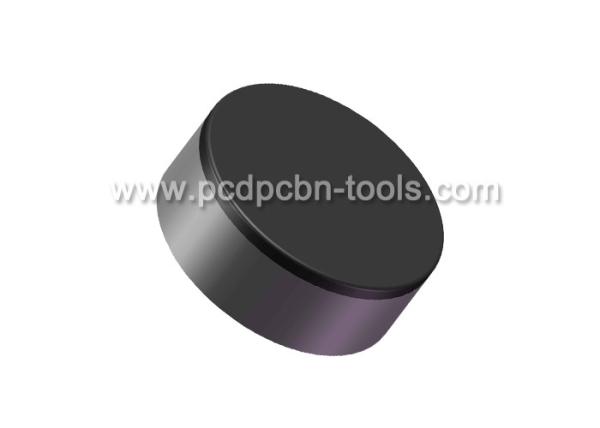

3.Models of RNGN Round PCBN Inserts

BN-H10 RNGN0903 PCBN Inserts Semi - Interrupt machining Wind Power Bearings 42CrMo4
Type Dimension

Standard Chamfer

 Grades

Corresponding tool holder
L(mm) φI.C(mm) S(mm) BN-H10
RNMN090300 9 9.525 3.18

S01020

S01025

S02020

 ◎

CRGNR/L

CRDNN
RNMN090400 9 9.525 4.76 ●

4. Typical Application Case

BN-H10 RNGN0903 PCBN Inserts Machining the wind power bearings

Component: Wind power bearings,42CrMo4, HRC58-62, Semi-Interrupt Turning
Selected Insert: BN-H10 RNGN090300S02035
Cutting Condition: ap=1mm(Roughing), ap=0.15mm (Finishing),Fr=0.25mm/r,Dry cutting

Insert material

Cutting Speeds

Lifetime

Efficiency
Halnn BN-H10 145m/min

3pcs/blade

Improved 20%

Some Brand CBN

 120m/min

2pcs/blade

 ----

BN-H10 RNGN0903 PCBN Inserts Semi - Interrupt machining Wind Power Bearings 42CrMo4
