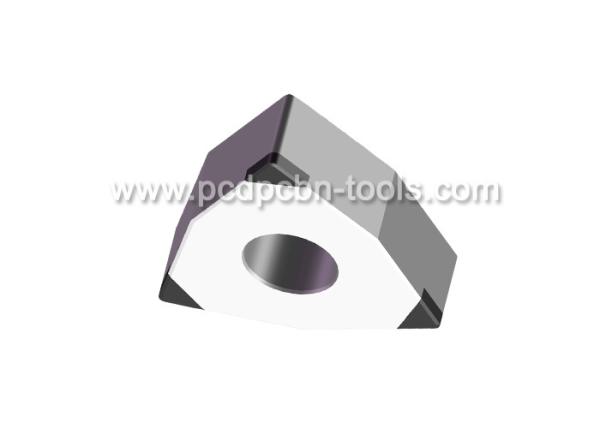

WNGA120408 Cbn Turning Tool Inserts Machining Compressor Bearings
WNGA120408 Cbn Turning Tool Inserts Machining Compressor Bearings
WNGA120408 Cbn Turning Tool Inserts Machining Compressor Bearings
WNGA120408 Cbn Turning Tool Inserts Machining Compressor Bearings
Specifications
Brand Name :
Halnn
Model Number :
WNGA12/WNGA08
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,paypal
Supply Ability :
100000 pcs per month
Delivery Time :
5~15 working days
Packaging Details :
10 pcs in one plastic box, outside carton box
Materials :
Cubic Boron Nitride
Application :
Hard Turning
Halnn Grade :
BN-K20
MOQ :
10 pcs
Orgin Country :
China
Machining Type :
Milling,Turning, Grooving
Description

CBN Cutting Tools BN-K20 WNGA120408 Machining Air-Conditioning Compressor Bearings

1. BN-K20 CBN Cutting Tools

Insert Grade Suited Materials Machining Type Typical Application
BN-K20 Gray Cast Iron Semi-Finishing, Finishing Brake Disc, Cast Iron Engine,Gearbox

2. WNGA CBN Cutting Tools Models

WNGA120408 Cbn Turning Tool Inserts Machining Compressor Bearings WNGA120408 Cbn Turning Tool Inserts Machining Compressor Bearings
Type Dimension

Standard Chamfer

 Grades
L(mm) φI.C(mm) S(mm) φd(mm) r(mm) BN-H11 BN-H20 BN-K20 BNK30
WNGA080404-6S 8 12.7 4.76 5.16 0.4

S01015

S01020

S01025

S02020

 ● ● ● ●
WNGA080408-6S 8 12.7 4.76 5.16 0.8 ● ● ● ●
WNGA080412-6S 8 12.7 4.76 5.16 1.2 ● ● ● ●

3.Typical Application ~ BN-K20 CBN Cutting Tools For Machining Compressor Bearings

BN-K20 CBN Cutting Tools Machining Compressor Bearings
Machining Part: Air-conditioning compressor bearing Materials: Bearing Steel
Workpiece Hardness:HB220~260 Inserts Grade:BN-K20 WNGA120408
Cutting Type:Dry Cutting

Cutting Parameters:

ap=0.3mm,Fr=0.25mm/r,Vc=800m/min
Testing Performance
Inserts Materials Linear Speed(m/min) Lifetime/edge Failure mode
Halnn BN-K20 800 500 Normal wear
Coating Inserts 330 80 Chipping
