Specifications
Brand Name :
Halnn
Model Number :
DCGW110304
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,paypal
Supply Ability :
100000 pcs per month
Delivery Time :
5~15 working days
Packaging Details :
10 pcs in one plastic box, outside carton box
Materials :
PCBN
Application :
Cast Iron Compressor
Halnn Grade :
BN-K10
MOQ :
10 pcs
Orgin Country :
China
Machining Type :
Continuous Turning
Description

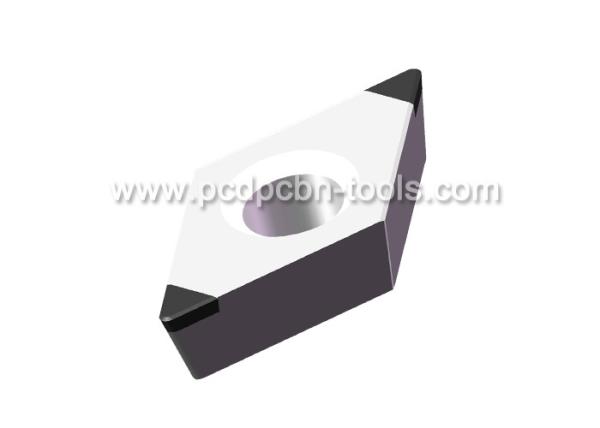

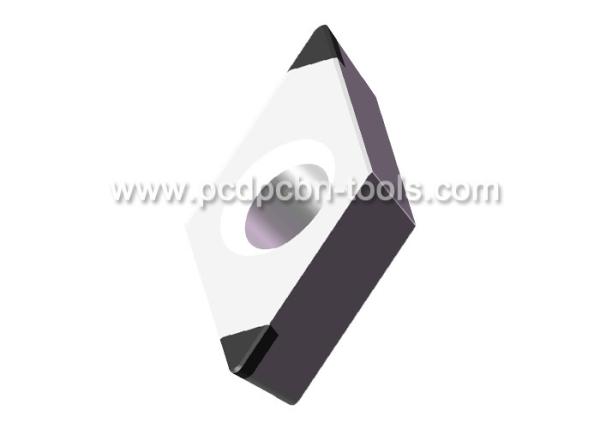

DCGW110304 PCBN Inserts BN-K10 Machining Cobalt-Chromium Alloy Medical Equipment

1. BN-K10 PCBN Inserts

Insert Grade Suited Materials Machining Type Typical Application
BN-K10

Gray Cast Iron, Powder Metallurgical

Finishing

 Valve seat ring; Engine cylinder bore; Powder Metallurgy parts

BN-K10 belong to compound pcbn, it is usually used for machining gray cast iron and powder metallurgical parts, it mainly used for finishing process, typical component include valve seat ring, engine cylinder bore,ect.

2.Typical Application ~ BN-K10 PCBN Inserts Machining Medical Equipment

BN-K10 PCBN Inserts Machining Co-Cr Alloy Hip joint supporter
Machining Part:Hip joint supporter Machining Materials:Cobalt-chromium alloy
Workpiece Hardness:HRC 35 Inserts Grade:BN-K10 DCGW11T304
Cutting Type:Dry Cutting Cutting Parameters:ap=0.15mm,Fr=0.10mm/r,Vc=210m/min
Testing Performance
Inserts Materials Linear Speed(m/min) Lifetime/edge Flank wear/mm
Halnn BN-K10 210 230 0.4
Other PCBN Inserts 180 200 0.5

3. DCGW PCBN Inserts Specifications

DCGW110304 Hard Metal Cutting Tools Machining Cobalt - Chromium Alloy Medical Equipment DCGW110304 Hard Metal Cutting Tools Machining Cobalt - Chromium Alloy Medical Equipment
Type Dimension

Standard Chamfer

 Grades
L(mm) φI.C(mm) S(mm) φd(mm) r(mm) BN-K10
DCGW070202-2S 7 6.35 2.38 2.8 0.2

S01015

S01020

S01025

S02020

S02025

 ●
DCGW070204-2S 7 6.35 2.38 2.8 0.4 ●
DCGW070208-2S 7 6.35 2.38 2.8 0.8 ●
DCGW11T302-2S 11 9.525 3.97 4.4 0.2 ●
DCGW11T304-2S 11 9.525 3.97 4.4 0.4 ●
DCGW11T308-2S 11 9.525 3.97 4.4 0.8 ●

4. Common Compound PCBN Inserts Models

DCGW110304 Hard Metal Cutting Tools Machining Cobalt - Chromium Alloy Medical Equipment DCGW110304 Hard Metal Cutting Tools Machining Cobalt - Chromium Alloy Medical Equipment DCGW110304 Hard Metal Cutting Tools Machining Cobalt - Chromium Alloy Medical Equipment DCGW110304 Hard Metal Cutting Tools Machining Cobalt - Chromium Alloy Medical Equipment
CNGA-2S TNGA-3S VNGA-2S DNGA-2S
