Specifications
Brand Name :
Halnn
Model Number :
TNGA1604
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,paypal
Supply Ability :
100000 pcs per month
Delivery Time :
5~15 working days
Packaging Details :
10 pcs in one plastic box, outside carton box
Materials :
PCBN
Application :
Alloy tool steel
Halnn Grade :
BN-H20
MOQ :
10 pcs
Orgin Country :
China
Machining Type :
Continuous Turning
Description

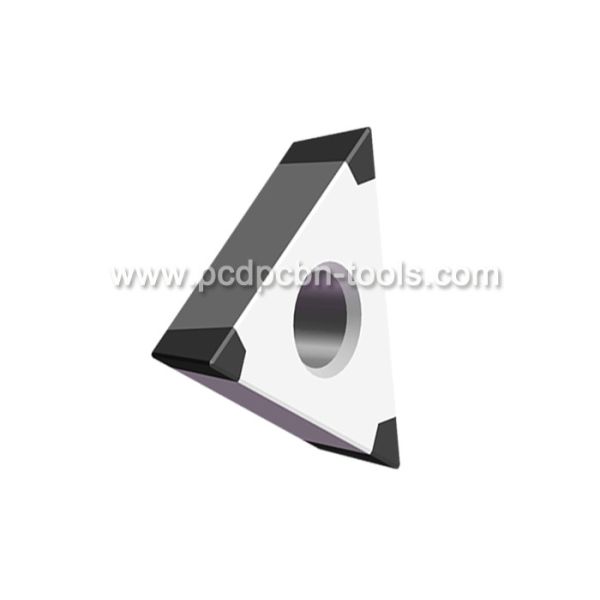

BN-H20 PCBN Inserts Hard Turning Alloy Tool Steel Cr12MoV Rolling Round Thread


1. BN-H20 PCBN Inserts Features

Insert GradeSuited MaterialsMachining TypeTypical Application
BN-H20Hardened steel, other materials of difficult to machineSemi-Finishing, FinishingHardened Steel Gears, Mold,ect


BN-H20 PCBN Insert belong to brazed pcbn inserts, it has multi cutting edges, which will be more economic than other pcbn inserts when semi-finish machining hardened steel.


2.Typical Application ~ BN-H20 PCBN Inserts Machining Medical Equipment

BN-H20 PCBN Inserts Machining Alloy Tool Steel rolling round thread
Machining Part:Rolling Round ThreadMachining Materials:Cr12MoV alloy tool steel
Workpiece Hardness:HRC59Inserts Grade:BN-H20 TNGA160404
Cutting Type:Dry Cutting

Cutting Parameters:
ap=0.2mm,Fr=0.08mm/r,Vc=70m/min

Testing Performance
Inserts MaterialsLinear Speed(m/min)Lifetime/edgeFailure mode
Halnn BN-H207030Normal wear
Carbide inserts26.21Chipping


3. Triangle TNGA PCBN Inserts Specifications

BN-H20 PCBN Turning Cutting Tools Alloy Tool Steel Cr12MoV Rolling Round Thread BN-H20 PCBN Turning Cutting Tools Alloy Tool Steel Cr12MoV Rolling Round Thread
TypeDimension

Standard Chamfer

BN-H20
L(mm)φI.C(mm)S(mm)φd(mm)r(mm)
TNGA160404-6S169.5254.763.810.4

S01015

S01020

S01025

S02020

●
TNGA160408-6S169.5254.763.810.8●
TNGA160412-6S169.5254.763.811.2●


4. Common Compound PCBN Inserts Models

BN-H20 PCBN Turning Cutting Tools Alloy Tool Steel Cr12MoV Rolling Round ThreadBN-H20 PCBN Turning Cutting Tools Alloy Tool Steel Cr12MoV Rolling Round ThreadBN-H20 PCBN Turning Cutting Tools Alloy Tool Steel Cr12MoV Rolling Round ThreadBN-H20 PCBN Turning Cutting Tools Alloy Tool Steel Cr12MoV Rolling Round Thread
SNGA-8STNGA-6SVNGA-4SWNGA-6S
