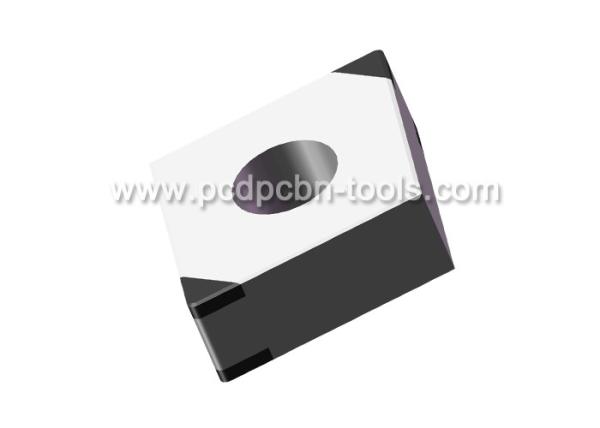

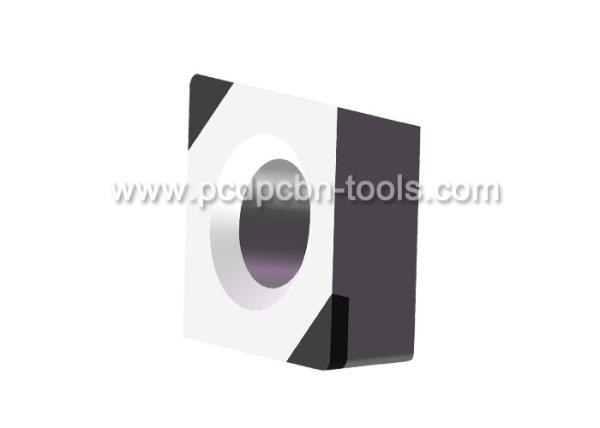

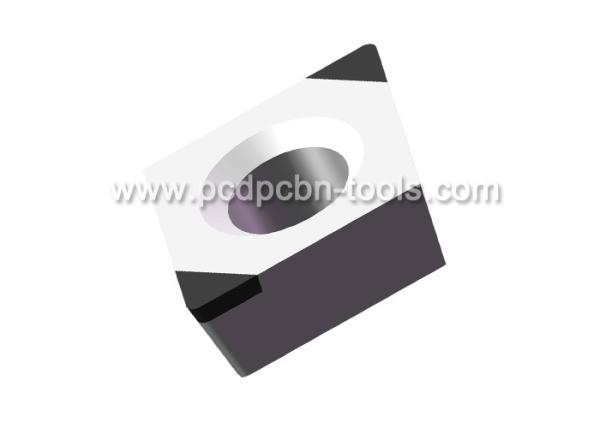

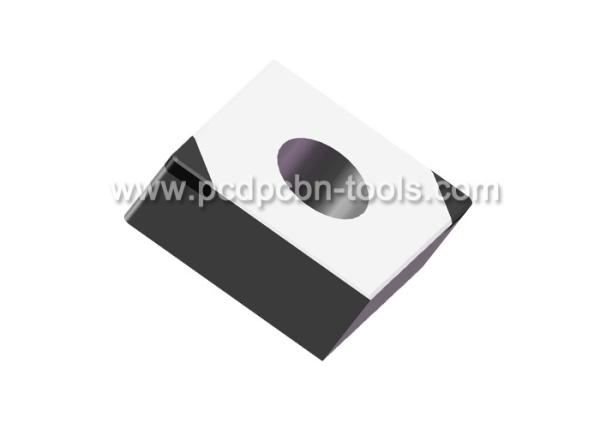

CNGA Cbn Cutting Tools Cutting Hardened Steel Replace Carbide Inserts
CNGA Cbn Cutting Tools Cutting Hardened Steel Replace Carbide Inserts
CNGA Cbn Cutting Tools Cutting Hardened Steel Replace Carbide Inserts
CNGA Cbn Cutting Tools Cutting Hardened Steel Replace Carbide Inserts
CNGA Cbn Cutting Tools Cutting Hardened Steel Replace Carbide Inserts
CNGA Cbn Cutting Tools Cutting Hardened Steel Replace Carbide Inserts
CNGA Cbn Cutting Tools Cutting Hardened Steel Replace Carbide Inserts
CNGA Cbn Cutting Tools Cutting Hardened Steel Replace Carbide Inserts
Specifications
Brand Name :
Halnn
Model Number :
CNGA/DNGA/TNGA/WNGA
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
100000 pcs per month
Delivery Time :
5~15 working days
Packaging Details :
10 pcs in one plastic box, outside carton box
Application :
Hardened Steel
Halnn Grade :
BN-H10/BN-H21/BN-K10/BN-K20/BN-S20
Materials :
Cubic Boron Nitride
MOQ :
10 pcs
Coating :
With/Without Coating
Origin Country :
China
Description

Hard Turning Inserts and CBN Grades For Finish Machining Hardened Steel


1.Hard Turning Inserts CBN Grade and Application

Insert Grade Suited Materials Machining Type Insert Image
BN-S20 Hardened Steel, Heat and abrasive resistant steel, High manganese steel Roughing,Semi-Finishing

CNGA Cbn Cutting Tools Cutting Hardened Steel Replace Carbide Inserts
BN-H11 Hardened Steel Semi-Finishing,Finishing CNGA Cbn Cutting Tools Cutting Hardened Steel Replace Carbide Inserts
BN-H20 Hardened steel,Other materials Semi-Finishing,Finishing
BN-H05 Hardened Steel Finishing CNGA Cbn Cutting Tools Cutting Hardened Steel Replace Carbide Inserts
BN-H10 Hardened Steel, high strength cast iron Finishing
BN-H21 Hardened Steel Finishing


2.Cutting Parameters for reference

CBN Content

Halnn CBN

Cutting Depth

Condition

Low Content

 BN-S20 1-10mm

Continuous~ Interrupt
BN-H11 ≤1mm

Continuous
BN-H05 ≤0.2mm

Continuous
BN-H10 ≤0.5mm

Continuous~Semi- Interrupt
BN-H21 ≤0.5mm

Semi-Interrupt ~Heavy Interrupt


3.Typical Application Case ~ Hard Turning Gears

Hard Turning Inserts BN-H10 CNGA continuous turning gears
CNGA Cbn Cutting Tools Cutting Hardened Steel Replace Carbide Inserts Component Gears Materials 20CrMnTi
Hardness HRC58~62 Machining Condition

Dry Cutting
Insert Grade BN-H10 CNGA120408 Roughness requirements Ra0.8
Vc=180m/min, fr=0.1mm/r, ap=0.2mm
CBN Grade PCBN Inserts Halnn BN-H10 Halnn BN-H10 C25 (Coating PCBN)
Machining Qty (pieces/insert) 550 800 1200
Tool Life ...... Improved 45% Improved 118%

4. Application

PCBN Inserts are mainly used for machining hardened steel and cast iron materials. Above cbn grade are mainly used for hard turning hardened steel, such as Gear Steel, Bearing Steel, Carbon tool steel, die steel, high-speed steel and so on.

CNGA Cbn Cutting Tools Cutting Hardened Steel Replace Carbide Inserts
