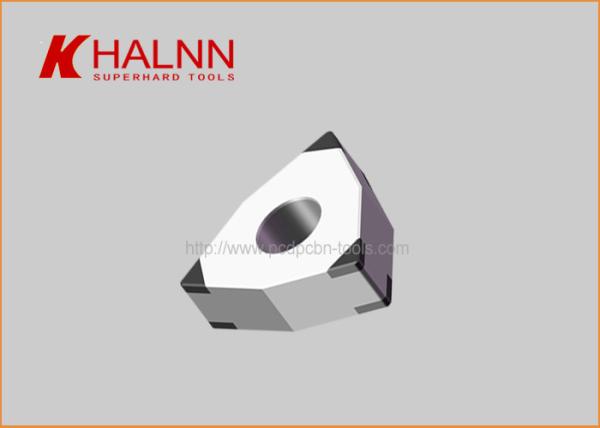

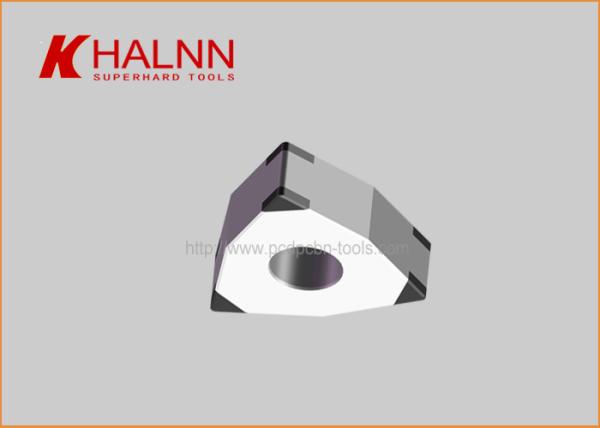

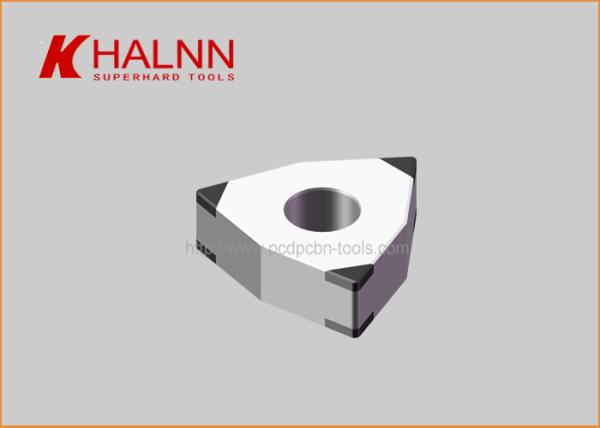

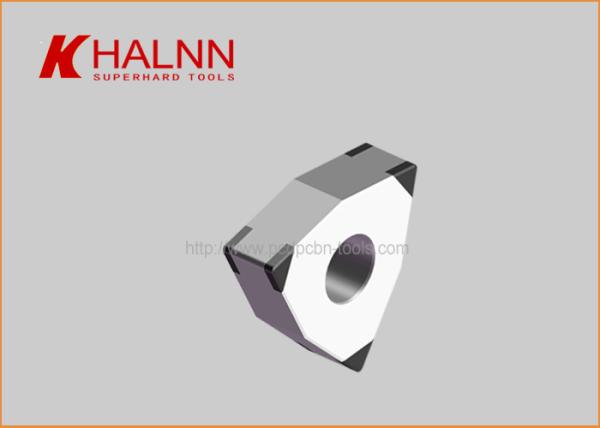

ISO9001 High Efficiency Pcbn Cutting Tools , Cubic Boron Nitride Inserts
ISO9001 High Efficiency Pcbn Cutting Tools , Cubic Boron Nitride Inserts
ISO9001 High Efficiency Pcbn Cutting Tools , Cubic Boron Nitride Inserts
ISO9001 High Efficiency Pcbn Cutting Tools , Cubic Boron Nitride Inserts
ISO9001 High Efficiency Pcbn Cutting Tools , Cubic Boron Nitride Inserts
ISO9001 High Efficiency Pcbn Cutting Tools , Cubic Boron Nitride Inserts
ISO9001 High Efficiency Pcbn Cutting Tools , Cubic Boron Nitride Inserts
ISO9001 High Efficiency Pcbn Cutting Tools , Cubic Boron Nitride Inserts
Specifications
Brand Name :
Halnn
Model Number :
WNGA080404-6S
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable ( About 10-30 Usd/ Piece)
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
100000 pcs per month
Delivery Time :
3~15 working days
Packaging Details :
10 pcs in one plastic box inside, carbon box outside
Machining Process :
Interrupt Cutting
Dimension :
Customter-made
Application :
Wind Power Bearings
Origin Country :
Henan,China
Mnchining Material :
Hardened Steel
Brade :
Halnn Tools
Insert Garde :
WNGA080404-6S
Body :
Cubic boron nitride
Description

BN-H10 PCBN Turning Tool Interrupt Cutting GCr15SiMn Hardened Steel Wind turbine bearing


1. Halnn Tools BN-H10 PCBN Turning Tool full form Interrupt Cutting GCr15SiMn Hardened Steel Wind turbine bearing

With the continuous development and innovation of the tool industry, the company has finally developed a high-efficiency cutting tool and realized the “replacement grinding by turning” process. The “turning for grinding instead of grinding” process not only avoids grinding burns, but also mainly performs dry cutting, achieving clean production and creating a good processing environment.Tool materials that can be used to “turn and grind instead of grinding” slewing bearings are coated, ceramic and CBN. In order to reduce the production cost, different parts need to choose different tool materials. For example, the slewing bearing with larger diameter gears is better to choose more wear-resistant ceramic tools and CBN tools.Secondly, ceramic tools and CBN tools can be used in combination, among which ceramic tools are brittle. CBN tool hardness is second only to diamond. It is called superhard tool and can process ferrous metal above HRC45, especially in the field of hardened steel.


2.Detailed Data of PCBN Turning Tool

ISO9001 High Efficiency Pcbn Cutting Tools , Cubic Boron Nitride Inserts
TypeDimensionStandard ChamferGrades
L(mm)φI.C(mm)S(mm)φd(mm)r(mm)BN-H05BN-H10BN-H21
WNGA080404-6S8.712.74.765.160.4

S01015
S01020
S01025
S02020
S02025

◎◎◎
WNGA080408-6S8.712.74.765.160.8◎◎◎
WNGA080412-6S8.712.74.765.161.2◎◎◎


3.Halnn Tools CBN and PCD Cutting Tool

ISO9001 High Efficiency Pcbn Cutting Tools , Cubic Boron Nitride Inserts


4.Application Case of PCBN Turning Tool Machining Bearing

BN-H10 PCBN Turning Tool Interrupt Cutting GCr15SiMn Hardened Steel Wind turbine bearing

BN-H10 PCBN Turning Tool processing bearings
Machining Part:Slewing bearing ringISO9001 High Efficiency Pcbn Cutting Tools , Cubic Boron Nitride Inserts
Workpiece Hardness:HRC 55
Cutting Type:Dry Cutting
Machining Materials:GCr15SiMn
Inserts Grade:BN-H10
Cutting Parameters: ap=0.5mm,Fr=0.45mm/r,Vc=110m/min.
Testing Performance
Inserts MaterialsLinear Speed (m/min)Lifetime/edgeRoughness
Halnn BN - H101108Ra0.8
Ceramic Inserts901Ra1.6


5.Service


Pre-Sales Service

l) Prompt reply and 24 hours online,professional team to provide best price and quality product.
l) Same testing support
l ) Every batch of products will be tested to ensure its quality.

After-sales Service

l) The real-time logistics information monitoring
l ) Any questions about the product can be consulted at any time.
l) Product with any problem can return.
