Specifications
Brand Name :
Halnn
Model Number :
CNMN120404
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable ( About 10-30 Usd/ Piece)
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
100000 pcs per month
Delivery Time :
3~15 working days
Packaging Details :
10 pcs in one plastic box inside, carbon box outside
Machining Process :
Processing
Dimension :
Customter-made
Application :
Mud pump
Origin Country :
Henan,China
Mnchining Material :
High Chromium Cast iron
Brade :
Halnn Tools
Insert Garde :
CNMN120404
Body :
Cubic boron nitride
Coating :
Uncoated
Grade :
ISO Grades
Description

Top sales of long life CBN Cutting Inserts Cutting Mud pump with excellent wear resistance

1. Halnn Tools Top sales of long life CBN Cutting Inserts Cutting Mud pump with excellent wear resistance

In previous times, manufacturers choose carbide insert for machining

pumps, which has low efficiency, the reasons as follows:

  • Industry pump are castings, it will have defects
  • Carbide insert itself hardness is low, only can use low cutting speed

Then they try ceramic cutters, the characteristics are as follows

  • High hardness, high strength, high red hardness
  • Excellent wear resistance and stable chemical performance and low

Co-efficient fiction

Ceramic cutters can machine pump, but it is brittle, it will be easily chipping when meet casting defects, only can be used for fine finishing process.

CBN Inserts are mainly used for machining high hardness materials, the hardness is higher than ceramic insert and carbide insert, also can be used for high speed cutting, especially Halnn BN-K1 solid cbn insert.

2. CBN Cutting Inserts Characteristics

Recommend CBN Grade Machining Materials Process Cutting Parameters
Cutting Speed Vc (m/min) Cutting Depth ap Feed Rate Fr(mm/r)
(mm)
BN-K1 (Hardness:HRC35-68) Roughing 35-120 1-10 0.15-1.0
BN-K10,BN-H10 High Hardness Cast Iron Finishing 60-200 ≤1 0.05-0.35

3.Detailed Data of CBN Cutting Inserts

Uncoated CBN Cutting Inserts Cutting Mud Pump Long Life Wear Resistance
Type Dimension Standard Chamfer Grades Corresponding tool holder
L(mm) φI.C(mm) S(mm) r(mm) BN-K1 BN-S20 BN-S200
CNMN120404 12.9 12.7 4.76 0.4

S01020

S01025

S02020

S02030

S02530

S03020

 ● ● ● CCLNR/L
CNMN120408 12.9 12.7 4.76 0.8 ● ● ●
CNMN120412 12.9 12.7 4.76 1.2 ● ● ●
CNMN120416 12.9 12.7 4.76 1.6 ● ● ●
CNMN120704 12.9 12.7 7.94 0.4 ● ● ●
CNMN120708 12.9 12.7 7.94 0.8 ● ● ●
CNMN120712 12.9 12.7 7.94 1.2 ● ● ●
CNMN120716 12.9 12.7 7.94 1.6 ● ● ●

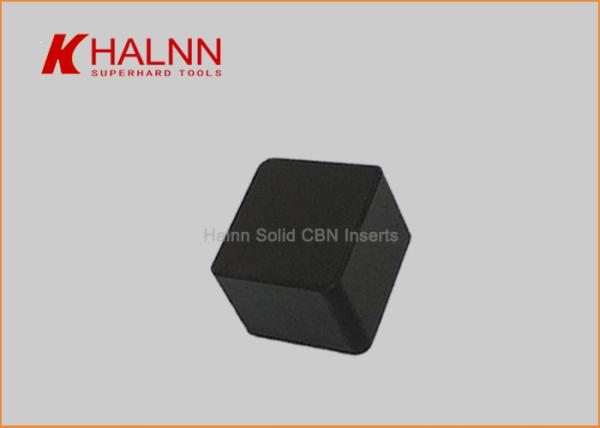

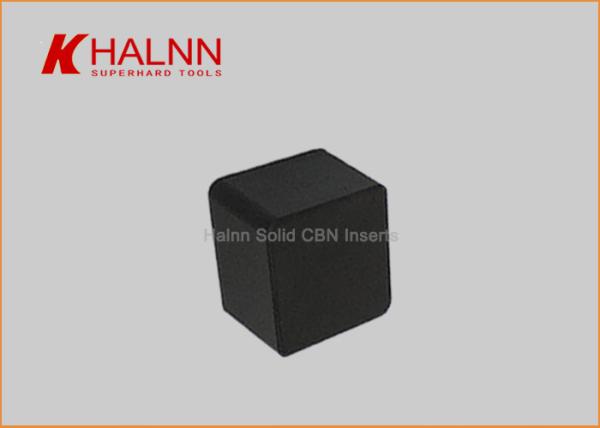

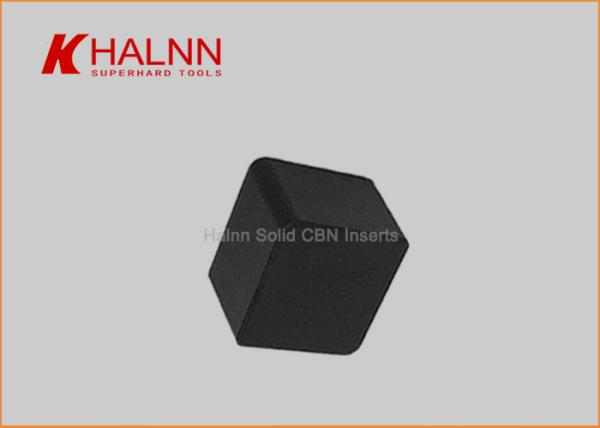

4.Pictures of Halnn Tools CBN Cutting Inserts

Uncoated CBN Cutting Inserts Cutting Mud Pump Long Life Wear Resistance

5.Application Case of Top sales of long life CBN Cutting Inserts Cutting Mud pump with excellent wear resistance

Machining Part: High Chromium Cast iron Mud Pump
Workpiece Hardness:HRC 60
Cutting Type:Dry Cutting
Machining Materials:High Cr White Cast iron(Cr26)
Inserts Grade:BN-K1 CNMN120404
Cutting Parameters:ap=3.5mm,f=0.1mm/r,Vc=75m/min
Testing Performance
Inserts Materials Linear Speed(m/min) Feed Rate(mm/r) Lifetime/edge
Halnn BN-K1 82 0.1 85
Ceramic Inserts 38 0.08 10

6.FAQ

Q1. How is your quality?

A1. We have a very seriously control system. We guarantee the high performance of our products.

Q2.What is the Warranty for your products?

A2. For one year from the date of purchase, If any problem on our side, we will make prompt response, and take the shipping cost and send replacement.
