Industrial Ring Network 8*RS485 Fiber Modem
Industrial Ring Network 8*RS485 Fiber Modem
Industrial Ring Network 8*RS485 Fiber Modem
Industrial Ring Network 8*RS485 Fiber Modem
Industrial Ring Network 8*RS485 Fiber Modem
Industrial Ring Network 8*RS485 Fiber Modem
Specifications
Place of Origin :
Zhejiang, China (Mainland)
Brand Name :
FCTEL/ODM/OEM
Certification :
ISO9001
Model Number :
SRing2004
MOQ :
2 sets
Price :
120
Packaging Details :
Standard export carton packing
Delivery Time :
5-15days
Payment Terms :
L/C,T/T
Supply Ability :
2000 Pieces peer week
Name :
Industrial Ring Network 8*RS485 Fiber Modem
Fiber Interface :
SC/FC
Wavelength :
1310nm
Power supply :
AC/DC
Working Temperature :
-10°C ~ 50°C
Dimension :
Mini
Distance :
40KM
Color :
Black
Warranty :
3 years
Description

Industrial Ring Network 8*RS485 Fiber Modem


Industrial Ring Network 8*RS485 Fiber ModemIndustrial Ring Network 8*RS485 Fiber Modem

Product Overview of Industrial Ring Network 8*RS485 Fiber Modem

Ring Optical data type provides 8*RS232/422/485 in the optical fiber transmission, support a variety of fiber optic network topologies: point to point communications, chain network, star and redundant ring network protection, self-healing network topology, and on this basis, the networking is more complex network topologies, with a self-healing ring network protection. The product breakthrough contradictory legacy serial interface communication distance and speed, but also to solve the electromagnetic interference, ground loop interference and lightning damage problems, greatly improving the reliability of data communications, security and confidentiality.

Product Features of Industrial Ring Network 8*RS485 Fiber Modem

l Provide 1-8 independent serial ports (RS232/422/485 optional) channel, physical isolation from each other, there is no correspondence between the devices.

l Provide two fiber optic lines, it can automatically switch when the line failure, ensuring communication is normal.

l Support a variety of fiber-optic network structure: point to point, star, chain, ring redundancy, and can be combined into

more complex network topologies to support a variety of fiber optic network architecture: Point, star, chain, ring redundancy,

and can be combined into more complex network topologies to support a variety of fiber-optic network structure: point to point, star,

chain, ring redundancy, Can be combined into more complex network topologies

l Electrical interface uses a separate power supply module, completely isolated from the ground loop between the bus and the device;

while using optical isolation technology, isolation and internal communications bus data signal, Effective protection of the communications

equipment from power surges and ground loop interference and sabotage

l RS232/485/422 interface, optional three data, RS232 supports 3-wire RS232 (TXD, RXD, GND), flow control support CD, DSR, CTS

l RS232 / 485/422 channels can be transmitted from 0-115200 baud asynchronous serial data adaptive

l Serial port interface lightning reach IEC61000-4-5 (8 / 20μS) differential mode: 6KV, impedance (2Ω); Common mode: 6KV, impedance (2Ω) standard

l Optional AC 220V, DC -48V, DC + 24V, DC power no positive and negative points

Technical parameters of Industrial Ring Network 8*RS485 Fiber Modem

Fiber

Multi-mode Fiber

50/125um, 62.5/125um

Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber,

attenuation (3dbm/km)Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget:16dBm

Single-mode Fiber

8/125um, 9/125um

Maximum transmission distance:40Km

Transmission distance:40Km @ 9 / 125um single mode fiber,attenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm

RS232/422/485 interface

Rate: 0-115200Kbps

Interface characteristics: EIA RS232 RS422 RS485

Connector: Phoenix terminal

Working environment

Working temperature: -10°C ~ 50°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C

Storage Humidity: 5%~95 % (no condensation)

Model

Model Number: SRing2004

Functional Description

SRing 2008 8*Channel date Network Fiber Modem, Support point to point communication,

Chain network, star network ,Redundant ring network protection topology

Port Description

One Fiber interface;4*Channel date Network

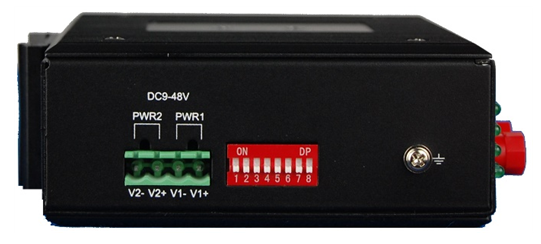

Power

Power supply: AC180V ~ 260V;DC –48V;DC +24V

Power consumption: ≤10W

Dimension

Product Size: 133X120X40mm (WXDXH)

Weight

0.685KG

Networking Applications of Industrial Ring Network 8*RS485 Fiber Modem

The product supports a variety of fiber optic network topologies: point to point communications, chain network, star and redundant ring network protection, self-healing topologies, and networking for more complex network topologies on this basis

u Point (Point to Point) Applications: distributed among some individual bus node requires long-distance communication, or serious interference require electrical isolation:

Industrial Ring Network 8*RS485 Fiber Modem

u chain (Line) Applications: distance between the plurality of bus communication between nodes required, or multiple nodes requires full electrical isolation interference:Industrial Ring Network 8*RS485 Fiber Modem

u Star (Star) Applications: the need for inter-bus chain topologies, or multiple nodes need to completely change when electrical isolation between the plurality of nodes;Industrial Ring Network 8*RS485 Fiber Modem

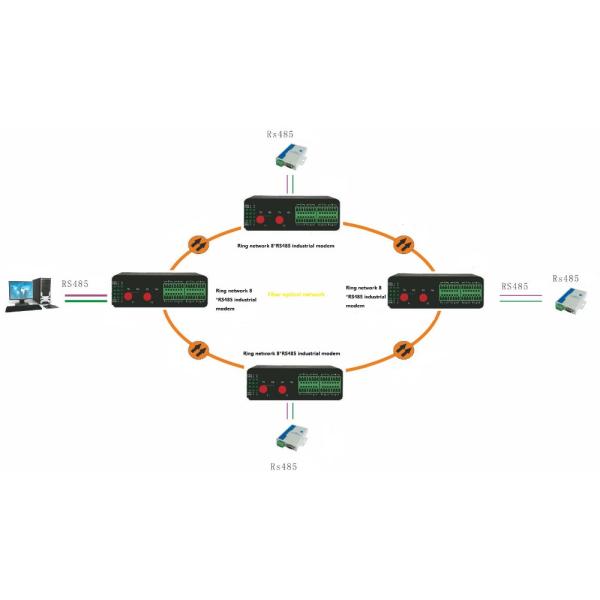

u Ring (Circle) Applications: When among a plurality of nodes required to provide redundant fiber link guarantee reliable communication bus:

Industrial Ring Network 8*RS485 Fiber Modem

This series of products and flexible, at the same time, the products can be dual optical port dual-fiber ring network redundancy, when somewhere in the fiber failure, the system will rebuild the network links within 10ms to ensure the normal communication systems, to achieve the self-healing protection bus signal transmission, network troubleshooting system will automatically restore;

Fibreasy

OEM manufacturer

Factory

Located in Hangzhou

Special requirements

Customized

Certifications

ISO9001, CE

Payment

T/T, L/C, Wester Union, Paypal

Shippment

DHL, Fedex, TNT, UPS, EMS

Warranty

3 years
