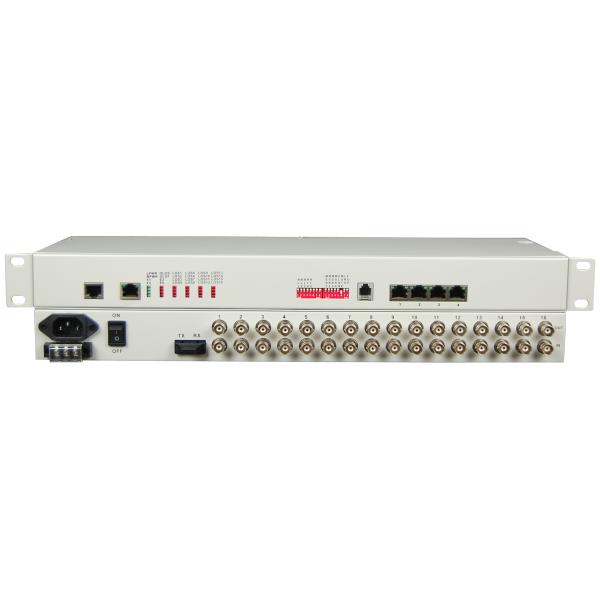

19inch G.703 BNC to fiber multiplexer 16E1 PDH MUX 120km ,AC+DC power
19inch G.703 BNC to fiber multiplexer 16E1 PDH MUX 120km ,AC+DC power
19inch G.703 BNC to fiber multiplexer 16E1 PDH MUX 120km ,AC+DC power
19inch G.703 BNC to fiber multiplexer 16E1 PDH MUX 120km ,AC+DC power
19inch G.703 BNC to fiber multiplexer 16E1 PDH MUX 120km ,AC+DC power
19inch G.703 BNC to fiber multiplexer 16E1 PDH MUX 120km ,AC+DC power
Specifications
Place of Origin :
China（Mainland）
Brand Name :
Fibreasy
Model Number :
FC-OP16
Certification :
ISO2008
Price :
460usd/pair
Packaging Details :
Standard export carton packing 522X198X82 mm (WXDXH)
Delivery Time :
5-15days
Payment Terms :
L/C,T/T, Western Union, MoneyGram
Supply Ability :
2000Pieces peer week
MOQ :
1 pair
e1 :
16ports , G.703 , BNC or RJ45
fiber :
single mode , double core fiber ,FC or SC
transmission distance :
up to 120km
power :
AC ,DC ,AC+DC power
size :
19inch 1U rack
Name :
16E1 PDH MUX
Description

16E1 PDH Fiber Optical Multiplexer

19inch G.703 BNC to fiber multiplexer 16E1 PDH MUX 120km ,AC+DC power

Product Description

Has perfect alarm, high reliability and stabilization, low power consumption, high integration, easy installation and maintenance.

The device is popularly with telecommunication operator.It is suitable in business for communication operator, governmentand kinds of entities.

General information:1-16Channel E1 interface, master optical fiber interface and backup optical fiber interface, 1-4Channel10M/100MEthernet interface (Line Rate 100M) and 2 expansion interface. 4Channel Ethernet interface is switch interface, cansupport VLAN. 2 expansion interface can be used as the transmission channel ofRS232/RS485/RS422asynchronous data, voice signal, 2/4 lineE&M audio signal, switch signal, Ethernet signal (Bandwidth 2M). It is very flexible.It has alarm function. The work is reliable, stable, and low power consumption, high integration, small size.

Features

  • Based on self -copyright IC
  • Modular wide dynamic optical detector
  • The device provides master optical fiber interface and backup optical fiber interface,Dual Optical Port backup function ensures that the work will never break
  • Ethernet interface rate is 10M/100M, half/full duplex auto- Negotiation
  • 4Channel Ethernet interface is switch interface, support VLAN, can set to 4 channel logical isolation
  • E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology
  • 1Channel PCM digital business phone (optional)
  • When optical lose signal, it can detect the remote device is power off or fiber is disconnected, andindicates alarm by LED
  • The local device can view the remote device working condition
  • Provide2 expansion interface, you can extend 1~2Channel asynchronous data, such as RS232/RS485/RS422/Manchester code; 1~2Channel voice, 1~4Channel switch , or two/four line audio and so on
  • Provide command the remote interface Loop Back, ease line maintenance
  • The transmission distance is up to 2-120Km without interruption
  • AC 220V, DC-48V, DC24V can be optional
  • DC-48V/DC24V power supply polarity detection function, Polarity-F

Technical parameters

Fiber Multi-mode Fiber 50/125um, 62.5/125um,

Maximum transmission distance: 2KM@62.5/125um single mode fiber, attenuation (3dbm/km)

Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm

8/125um, 9/125um

Maximum transmission distance: 120Km

Transmission distance: 120KM@9/125um single mode fiber, attenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm
Single-mode Fiber
E1 Interface

Interface Standard: comply with protocol G.703;
Interface Rate: n*64Kbps±50ppm;
Interface Code: HDB3;

E1 Impedance: 75Ω (unbalance), 120Ω (balance);

Jitter tolerance: In accord with protocol G.742 and G.823

Allowed Attenuation: 0~6dBm
Ethernet interface (10/100M)

Interface rate: 10/100 Mbps, half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45, support Auto-MDIX
Power

Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤5W
Dimension

Product size: 19 inch 1U 483X138X44mm(WXDXH)

Simple packaging: 522X198X82 mm (WXDXH)

Piece weight: 2.5KG
Working environment

Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

Networking Application

19inch G.703 BNC to fiber multiplexer 16E1 PDH MUX 120km ,AC+DC power

19inch G.703 BNC to fiber multiplexer 16E1 PDH MUX 120km ,AC+DC power

19inch G.703 BNC to fiber multiplexer 16E1 PDH MUX 120km ,AC+DC power

19inch G.703 BNC to fiber multiplexer 16E1 PDH MUX 120km ,AC+DC power

19inch G.703 BNC to fiber multiplexer 16E1 PDH MUX 120km ,AC+DC power

19inch G.703 BNC to fiber multiplexer 16E1 PDH MUX 120km ,AC+DC power
