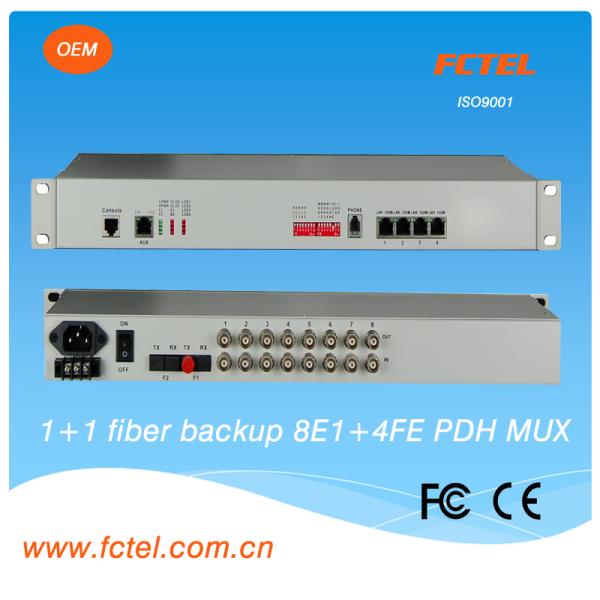

1+1 fiber back up 8E1 pdh with 4 port gigabit Ethernet fiber optical mulitplexer
1+1 fiber back up 8E1 pdh with 4 port gigabit Ethernet fiber optical mulitplexer
1+1 fiber back up 8E1 pdh with 4 port gigabit Ethernet fiber optical mulitplexer
1+1 fiber back up 8E1 pdh with 4 port gigabit Ethernet fiber optical mulitplexer
1+1 fiber back up 8E1 pdh with 4 port gigabit Ethernet fiber optical mulitplexer
1+1 fiber back up 8E1 pdh with 4 port gigabit Ethernet fiber optical mulitplexer
Specifications
Place of Origin :
China（Mainland）
Brand Name :
Fibreasy
Model Number :
FC-PDH8
Certification :
ISO2008
Price :
usd380/pair
Packaging Details :
Standard export carton packing , 522X198X82mm(WXDXH)
Delivery Time :
5-10days
Payment Terms :
L/C,T/T , Western Union, MoneyGram
Supply Ability :
2000 pieces per week
MOQ :
1 pair
E1 :
75ohm BNC , 120ohm RJ45 , 8 E1
Ethernet :
10/100/1000Mbps , RJ45 , 4Eth
Fiber port :
two fiber port , single mode , single core fiber ,FC/ SC
transmission distance :
up to 120km
power :
AC ,DC two power supply
management :
console , snmp managed
size :
19inch ,1U
Description

1+1 fiber back up 8E1 pdh with 4 port gigabit Ethernet fiber optical mulitplexer

Overview

8E1 TO 4GE PDH is1-8ChannelE1 interface, master optical fiber interface and backup optical fiber interface,1-4Channel 10M/100M Ethernetinterface (Line Rate 100M) and 2 expansion interface. 4Channel Ethernet interface is switch interface, can supportVLAN.2 expansion interface can be used as the transmission channel ofRS232/RS485/RS422asynchronous data, voice signal, 2/4 line E&M audio signal, switch signal, Ethernet signal (Bandwidth 2M). It is very flexible. It has alarm function.The work is reliable, stable, and low power consumption, high integration, small size.

Features

  • Based on self -copyright IC
  • Modular wide dynamic optical detector
  • The device provides master optical fiber interface and backup optical fiber interface, Dual Optical Port backup function ensures that the work will never break
  • Ethernet interface rate is10M/100M, half/full duplex auto- Negotiation
  • 4Channel Ethernet interface is switch interface, support VLAN, can set to 4 channel logical isolation
  • E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology
  • 1Channel PCM digital business phone (optional)
  • When optical lose signal, it can detect the remote device is power off or fiber is disconnected, andindicates alarm by LED
  • The local device can view the remote device working condition
  • Provide 2 expansion interface, you can extend 1~2Channel asynchronous data, such asRS232/RS485/RS422/Manchester code; 1~2Channel voice, 1~4Channel switch , ortwo/four line audioand so on
  • Provide command the remote interface Loop Back, ease line maintenance
  • The transmission distance is up to 2-120Km without interruption
  • AC 220V, DC-48V, DC24Vcan be optional
  • DC-48V/DC24V power supply polarity detection function, Polarity-Free


Technical parameters

Fiber
Multi-mode Fiber
50/125um, 62.5/125um,

Maximum transmission distance: 5KM@62.5/125um single mode fiber, attenuation (3dbm/km)

Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm

Single-mode Fiber
8/125um, 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40KM@9/125um single mode fiber, attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm

E1 Interface
Interface Standard: comply with protocol G.703;
Interface Rate: n*64Kbps±50ppm;
Interface Code: HDB3;
E1 Impedance: 75Ω (unbalance), 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm

Ethernet interface (10/100M)
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX

Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤5W

Dimension
Product size : 485X138X45mm(WXDXH)
Simple packaging: 522X198X82mm(WXDXH)
Piece weight : 2.3KG

Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
