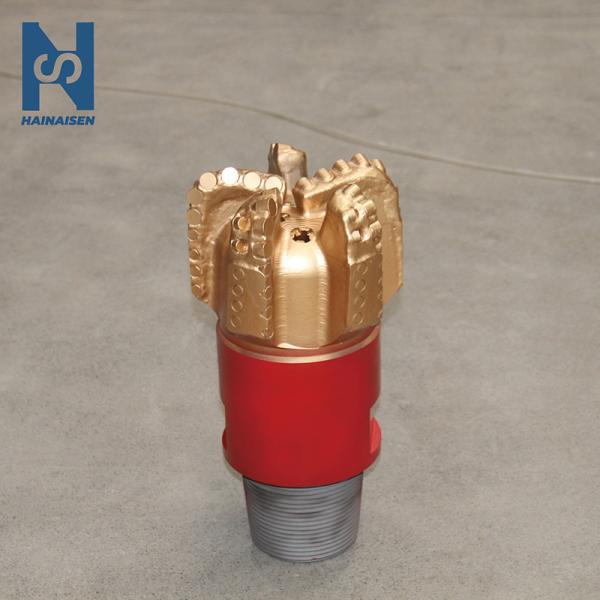

215.9mm Steel Body PDC Bit API Double Row Polycrystalline Diamond Compacts
215.9mm Steel Body PDC Bit API Double Row Polycrystalline Diamond Compacts
215.9mm Steel Body PDC Bit API Double Row Polycrystalline Diamond Compacts
215.9mm Steel Body PDC Bit API Double Row Polycrystalline Diamond Compacts
Specifications
Brand Name :
Hainaisen
Model Number :
8-1/2 HS6522TB
Certification :
ISO9001/API
Place of Origin :
China
MOQ :
5 pieces
Price :
To be negotiable
Payment Terms :
T/T, L/C
Supply Ability :
20pcs per day
Delivery Time :
5-7 business days
Packaging Details :
iron case
size :
8.5inch / 215.9mm
Name :
Diamond PDC coring bits
Connection :
API REG
Color :
Golden,Request,black,etc.
Cutter size :
16mm
Description

8.5in 5 Blades Diamond PDC Bit Oil Well Drilling Machine Stone Drill Bit

Provides multiple advantages in interbed lithology.
Enhanced drill bit stability with BHA shock and vibration mitigation.
Increases cleaning and decreases balling.
Superior PDC tool technology for perfect impact strength and wear resistance.
Double row cutters extend aggression and durability.
FEA software for tool distribution and layout makes drilling more efficient and reduces NPT.
The tool angle is optimized axially and radially by FBS (Force Balance Analysis) software, resulting in a more
aggressive and durable drill.
Through a series of empirical calculations and optimization of DOC (depth) of the drill bit, the tool can enter the
formation more reasonably.
The helical blade effectively improves the stability and ROP of the drill bit.

PRODUCT SPECIFICATIONS
Size 8 1/2 inch (Φ215.9mm)
Model number 8-1/2 HS6522TB
Body type steel body
Number of blade 5
Primary PDC cutter size 1613
Number of nozzle 7
Gauge length 48.5mm
API connection 4-1/2 REG
Make-Up Torque(KN.m) 16.3~21.7(4.79) KN·m(Mpa)
Application Oil & Nature Gas
Quality High Level
Package Iron Case
MOQ 5 Pieces
Certificate ISO 9001
OEM Yes
Customized Size Yes


215.9mm Steel Body PDC Bit API Double Row Polycrystalline Diamond Compacts
215.9mm Steel Body PDC Bit API Double Row Polycrystalline Diamond Compacts
Package&Delivery
Our bits will be shipped within 5 days after 40% full payment is received. They will be shipped by sea or air according to your requirements. Please feel free to contact us if you have any other requests. Thanks!

215.9mm Steel Body PDC Bit API Double Row Polycrystalline Diamond Compacts


Our Principle
We adhere to the principles of high quality, good after-service and great innovation. We also insist on providing efficient products and excellent service. Please contact us if you are interested. We look forward to hearing from you!

FAQ

1. Who are we?
We are a drill bit manufacturer started from 2013. Our main prodcuts are pdc drill bit for oil&gas, coal mining drill bit, core bit, pdc cutters and other types of pdc bits.

2. Is it produced according to the standard? And can I expect a quality product?
Yes, all our activities are accredited to ISO9001: 2015, both in products and services. At the same time, mature production technology will ensure the quality to satisfy the international request. We have strictly inspection in the production. Our bits are exported to the Middle East, Europe, North America, South America, Australia, and other countries and regions.

3. How to order the products?
Send an inquiry with detailed item descriptions or model number. If it is possible, please include a reference picture to avoid any misunderstanding.

4. What is the time about the delivery?
A: The lead time depend on quantity of order. Usually shipped by sea, small order or urgent order we can send you by air after received your agreement. According the distance from China to your port, usually from China to European about 25 days. To West of American 20 days.

Communication knows no boundaries, no matter where you are. So if you have any questions, please feel free to contact us anytime :)
