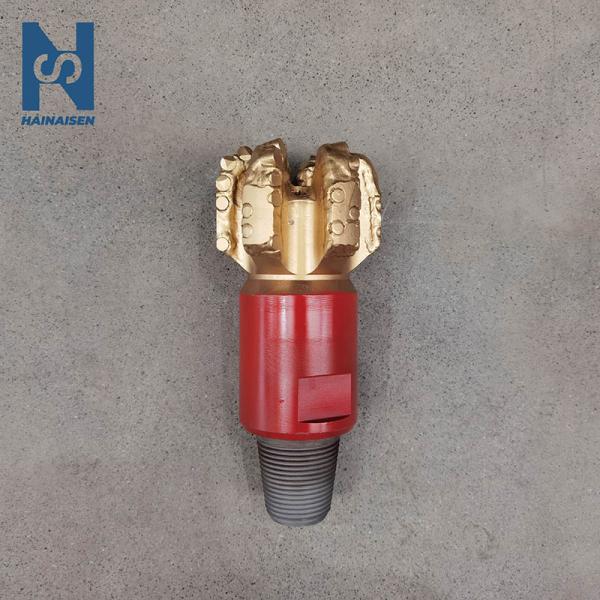

212.7mm Diamond Drilling Bit Polycrystalline 6 Blade Petroleum PDC Oilfield Drill Bit
212.7mm Diamond Drilling Bit Polycrystalline 6 Blade Petroleum PDC Oilfield Drill Bit
212.7mm Diamond Drilling Bit Polycrystalline 6 Blade Petroleum PDC Oilfield Drill Bit
212.7mm Diamond Drilling Bit Polycrystalline 6 Blade Petroleum PDC Oilfield Drill Bit
Specifications
Brand Name :
Hainaisen
Model Number :
8-5/8 HS66320C
Certification :
ISO 9001
Place of Origin :
China
MOQ :
5 pieces
Price :
To be negotiable
Payment Terms :
T/T, L/C
Supply Ability :
20pcs per day
Delivery Time :
5-7 business days
Packaging Details :
iron case
size :
8 5/8 inch, 212.7mm
Advantage :
High-effciency, Good Service
Usage :
petreleum exploration, water well
Processing type :
forging, casting
Gauge length :
70.68mm
Body Type :
steel body
Description

8-5/8 6 Blade Diamond PDC Drill Bit Water Well PDC Drill Bit

The polycrystalline diamond composite drill bit is a round composite chip, which is inserted and welded on a cylindrical tool, and the tool is inserted into the drill body to become a PDC drill. PDC bits are cheaper than natural diamond bits. After the successful manufacture and use of PDC bits in the early 1970s, they developed rapidly. It can be used at lower drilling pressures and higher RPMs, with higher bit footage and lower cost per footage.

PRODUCT SPECIFICATIONS
Size 8 5/8 inch (Φ212.7mm)
Model number 8-5/8 HS66320C
Body type steel body
Number of blade 6
Primary PDC cutter size 1613
Number of nozzle 6
Gauge length 70.68mm
API connection 4-1/2 REG
Make-Up Torque(KN.m) 16.3~21.7(4.79) KN·m(Mpa)
Application Oil & Nature Gas
Quality High Level
Package Iron Case
MOQ 5 Pieces
Certificate ISO 9001
OEM Yes
Customized Size Yes


212.7mm Diamond Drilling Bit Polycrystalline 6 Blade Petroleum PDC Oilfield Drill Bit

212.7mm Diamond Drilling Bit Polycrystalline 6 Blade Petroleum PDC Oilfield Drill Bit


Package&Delivery

Our drills will ship within 5 days after 50% full payment is confirmed. The drill bits will be shipped by sea or air as your request. And if you have any other questions, please contact us freely. Thanks!

212.7mm Diamond Drilling Bit Polycrystalline 6 Blade Petroleum PDC Oilfield Drill Bit

Our Principle

We adhere to the principle of high quality, high quality service and innovation. We also insist on providing efficient products and excellent service. If you are interested in our drills, please feel free to contact us. We look forward to working with you!

FAQ

1. Are you a trading company or manufacturer?

We have been a professional manufacturer of PDC bits since 2013.

2. Whether accept customized according to clients' requirements?

Yes, We accept customized products, no matter what size and what type. Please feel free to contact us.

3. About lead time and shipping time?

The lead time depends on the quantity of the order. Usually, it will take 3-5 days to ship to Tianjin Port or XI'AN Airport, China. For the small order or urgent order, we can send you by air once the order is confirmed.

No matter where you are, communication is no boundaries. So if you have any questions, please contact us at any time :)
