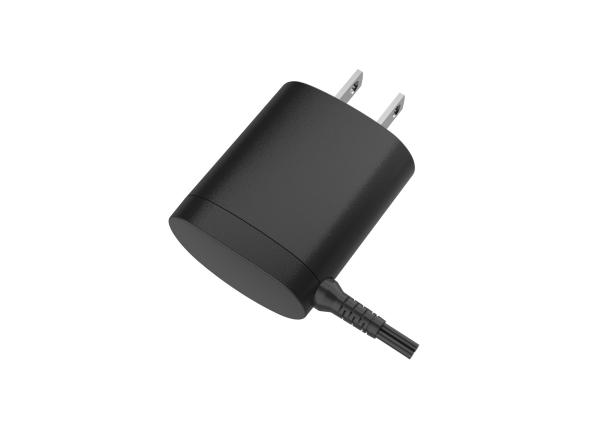

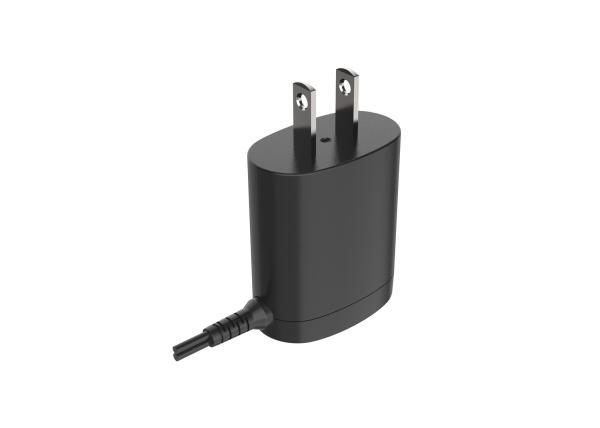

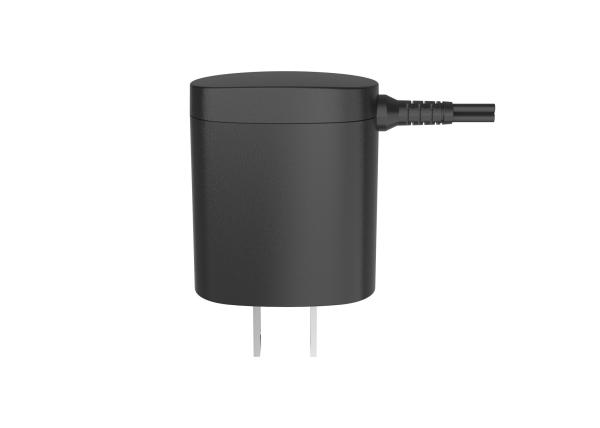

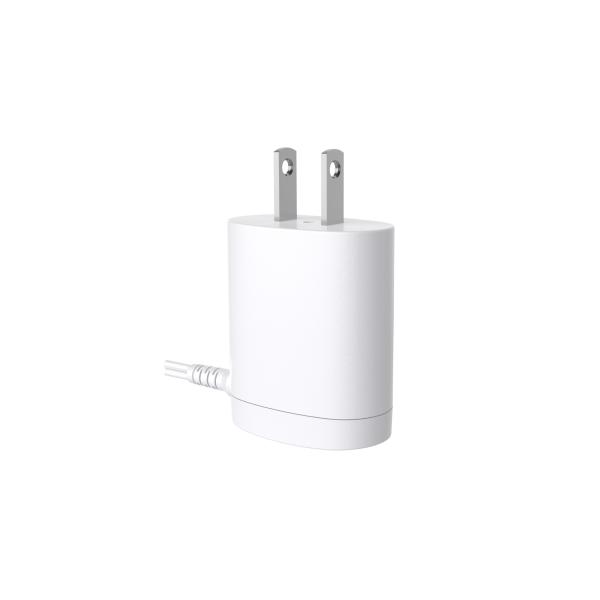

25g Usb Port Wall Charger , Travel Charger For Mobile 59.1*33*23mm
25g Usb Port Wall Charger , Travel Charger For Mobile 59.1*33*23mm
25g Usb Port Wall Charger , Travel Charger For Mobile 59.1*33*23mm
25g Usb Port Wall Charger , Travel Charger For Mobile 59.1*33*23mm
25g Usb Port Wall Charger , Travel Charger For Mobile 59.1*33*23mm
25g Usb Port Wall Charger , Travel Charger For Mobile 59.1*33*23mm
25g Usb Port Wall Charger , Travel Charger For Mobile 59.1*33*23mm
25g Usb Port Wall Charger , Travel Charger For Mobile 59.1*33*23mm
Specifications
Brand Name :
SZTY
Model Number :
TPA-41C050100UW01
Certification :
UL
Place of Origin :
China
MOQ :
3000pcs
Price :
Negotiable
Payment Terms :
T/T,30% deposit,70% balance payment before shipment
Supply Ability :
5KK/M
Delivery Time :
15-20 working days
Packaging Details :
Polybag or Gift box
Input :
AC 100~240V 50/60Hz 0.2A
Output :
DC 5V/1A
Color :
White or Black
Material :
PC 94 V0
Size :
59.1*33*23mm
Certificate :
UL
Description

Single USB Port 5W Wall Charger for Cellphone or Tablet with cable for US Plug

Product Details:

Model :TPA-41C050100UW01
Input:AC 100~240V 50/60Hz 0.2A
Output:DC 5V/1A
Size:59.1*33*23mm
Weight:25g
Application:Cellphone

Product EMC Requirement

1.Surge Test

Test Criteria:EN55024,EN61000-4-5
Common mode(null line to GND):±2KV
Differential mode(Line to null Line):±1KV
Performance Criteria:B

2.ESD Test
Test Criteria:EN55024,EN61000-4-2
Air discharge:±8V
Contact discharge:±4KV
Performance Criteria:B

Working Conditions

Operating Ambient :0℃~40℃
Non-operating Ambient:-20℃-65℃

Packing Including:

1xTPA-41C050100UU01 Product
1xBlister
1xGift Box

25g Usb Port Wall Charger , Travel Charger For Mobile 59.1*33*23mm

Parameter Sheet:

Input AC 100-240V 50/60Hz 0.2A
Output DC 5V/1A
weight 25g
Size 59.1*33*23mm
Protection Over voltage protection;Over current protection;Over temperature protection;Short circuit protection
Burn-in and Life test 2H
Drop test 6 sides,one time each side
Altitude Operating under 2000 meters
Leakage current ≤0.25mA
Standby input power ≤0.1W
Hold up time ≥0.1ms
Start up time ≤3s
Certificate UL
