International safety standard x ray luggage and baggage scanner 100100

General Specification of X-Ray scanner equipment:

Tunnel Size: 1000(W)*1000(H)mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 250kg

Dose per Inspection<1.7μGy/h

Resolution< 0.101mm Copper Wire

Spatial resolution: Level: dia1.3mm, Vertical: dia1.0mm

Penetrate resolution: Dia 0.511mm

Penetration: 34mm Steel

Film Safety: Guarantee ISO1600 Film

X-ray Leakage <0.1 μGy/h (at a distance of 5cm From external housing)

X-ray Generator of x-ray scanner equipment

Generate direct: Downward

Generate anger: 80 degree

Anode Voltage: 100~160Kv

Anode power: 0.4 to 1.2mA

Cooling / Duty Cycle: Oil Cooling /100%

Image System of x-ray scanner equipment

X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep

Monitor: High Resolution Color, LCD Accord, 17 inch

Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.

Image Grey Level: 4096

Image Max Resolution: 1024 * 1280pixel

Image Processing: 24bit for processing real time

Image storage: Storage 60000 pictures in real time

Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green

High-energy/low energy: switch from high energy to low energy

Assist to detect drug and explosive powder

Installation Data of x-ray scanner equipment

Operation temperature/Humidity: 0°C-45°C/20%-95%(non-condensing)

Storage Temperature/Humidity: -20°C-60°C/20%-95%(non-condensing)

Operation Power: 220VAC(±10%)50±3Hz

Power Consumption: 1.0 KW (max), 1.0KW(working)

Noise: <58db

Packing size of 100100: scanner: 191(L)*148(W)*217(H)cm

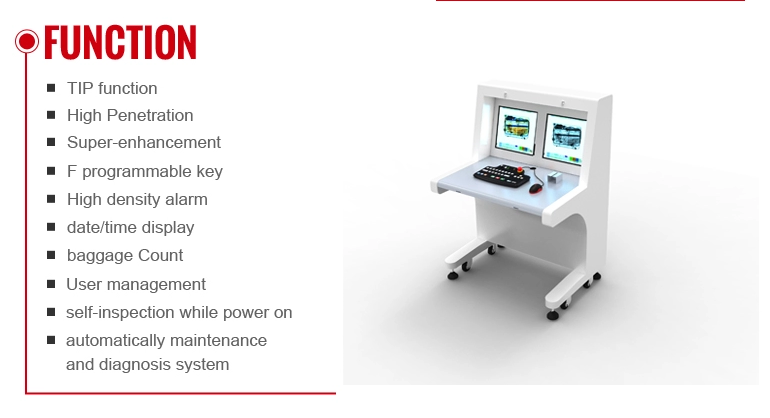

two monitors console: 124(L)*79(W)*139(H)cm

Strong wooden case packing. Gross weight: 1350KG.

• International standard packing,wooden case
• Shipping by sea or air for your optional
• One unit machine packs in two packages
• Scanner: 291*148*217cm Gross weight: 1350KG
• Console: 124*79*139cm Gross weight: 150KG
