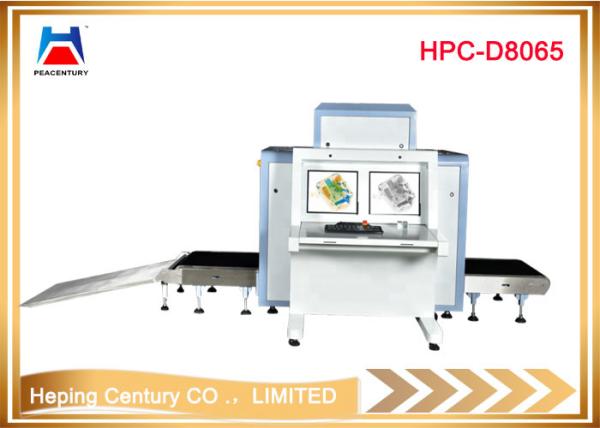

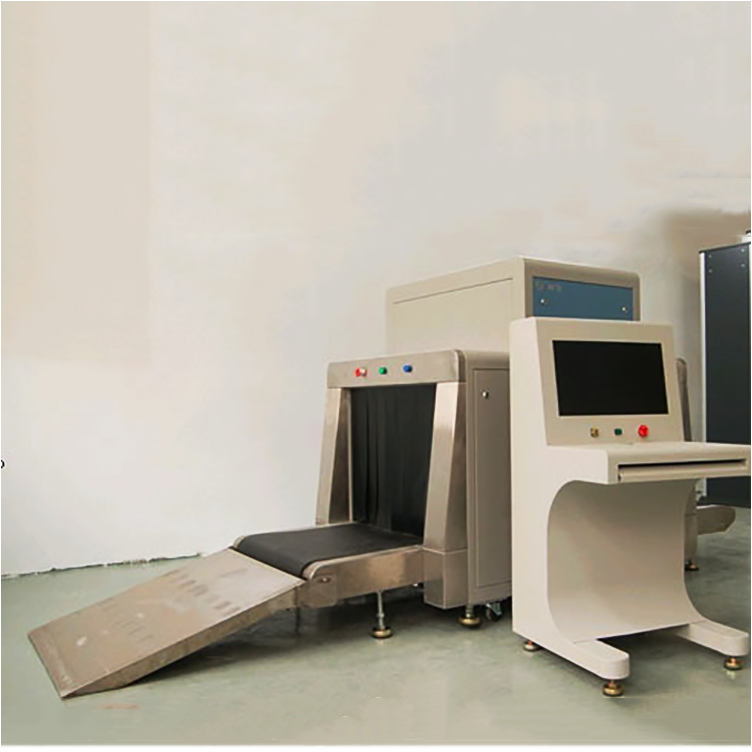

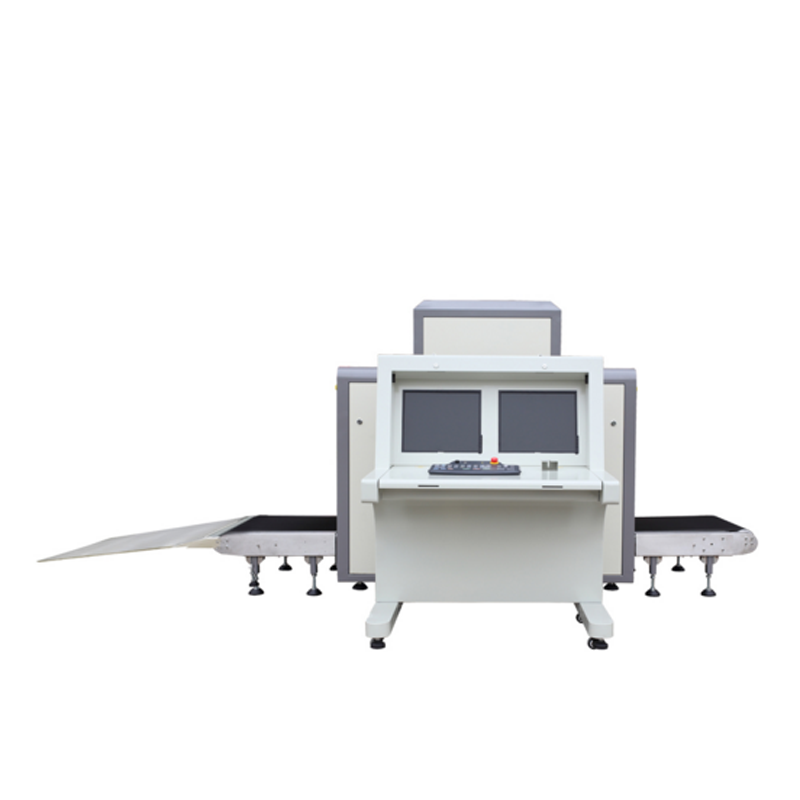

8065 Airport X Ray Luggage Machine Multi Energy With Wholesale Factory Price

Model: 8065 ------ Ideal selection for big heavy packages.

Typical Steel penetration 34mm
Designed to thwart the cleverest attempts at hiding weapons, drugs, stolen goods and other contraband, 8065 X-ray Security System is ideal for screening everything from big size packages to oddly shaped items and palletized loads.

Specification

Tunnel Size:800(W)*650(H)mm

Conveyor Speed:0.22m/s

Conveyor Max Load……200kg

Dose per Inspection……< 1.6μGy/h

Resolution……………< 0.0787mm Copper Wire

Spatial resolution…………Level: dia1.3mm, Vertical: dia1.0mm

Penetrate resolution………Dia 0.511mm

Penetration…………34mm Steel

Film Safety…………Guarantee ISO1600 Film

X-ray Leakage………<0.1μGy/h (at a distance of 5cm From external housing)

X-ray Generator

Generate direct: Bottom to up

Generate anger: 80 degree

Anode Voltage…………100~160Kv

Anode power…………0.4 to 1.2mA

Cooling / Duty Cycle………Oil Cooling /100%

Image System

X-ray Sensor………………L-Shaped Photodiode Array (multi-energetic) , 12bit Deep

Monitor……………………High Resolution Color, LCD Accord, 17 inch

Image Processing…………Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.

Image Grey Level……………4096

Image Max Resolution………1024 * 1280 pixel

Image Processing……………24bit for processing real time

Image storage……………Storage 60000 pictures in real time

Zones & Zoom……………1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

Multi-energetic distinguish objects …………organic objects in orange, inorganic objects in blue, mixture in green

High-energy/low energe ………………………switch from high energy to low energy

Assist to detect drug and explosive powder

Installation Data

Operation temperature/Humidity…… 0°C-45°C/20%-95%(non-condensing)

Storage Temperature/Humidity……… -20°C-60°C/20%-95%(non-condensing)

Operation Power………………………220VAC(±10%)50±3Hz

Power Consumption……………………1.0 KW (max)

Noise: <58db

Advantages:

1.With equipment to save electricity

2.Famous brand spare parts

3.Spellman brand generator from the USA;

4.Hamamatsu brand detector from Japan;

5.Interroll brand Roller from German;

6.Protective cover on lead curtain to avoid lead pollution;

7.Sound and light alarm;

8.Local network supported;

Applications:

1.Commercial buildings;

2.Factories(to find needle in clothing, shoes, bags)

3.Courthouses;

4.Embassies;

5.Government buildings;

6.Military installations;

7.Prisons;

8.Hotels;

9.Schools;

10.Convention centers;

11.Security checkpoints,etc.

1. Are you manufacturer or trader?

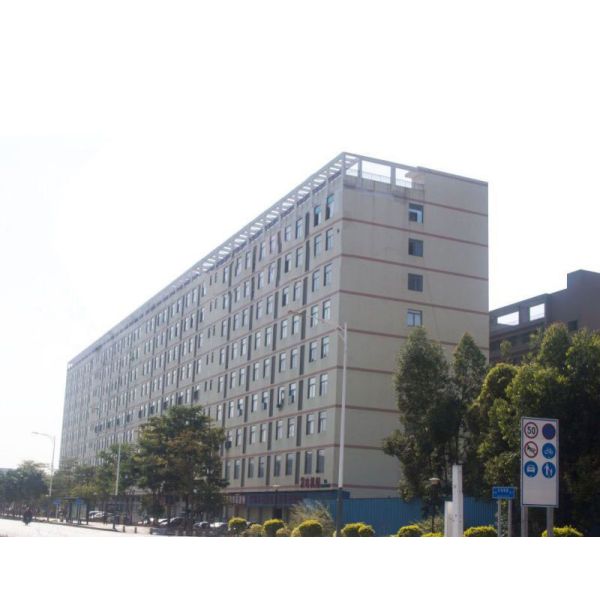

We are manufacturer, we have own factory in Shenzhen, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china.

2. Do you sell the accessories for Products ?

Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.

3.How about the packing for product?

Is it easy damaged during transportation? For light structure products like Gold detector. Hand held metal detector and so on we takes of strong carton box . For heavy structure products like conveyor belt needle detector. Food metal detector X ray machine .Our packing is Standard Export ploy Wooden Case. Every prepackage have a plastic bags cover .

4. What’s your main product?

We professional in needle detector. Metal detector. X ray machine and other related electronic products and machines

5.Where is your main sales market?

Our Gold meal detectors customer all over the world. Our hand metal detector and walk through metal detector mainly in Southeast of Asia. South of America.Middle east. East Europe and Africa Our needle and food metal detector mainly customers are from Australia. USA. All Europe and Asia

6.How about your after-sales policy?

Customer first is our always principle . All of our products normal warranty is 24months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .

7.Do you accept customer Logo and customized ?

we accept kinds of customized and logo of all of our products for customers
