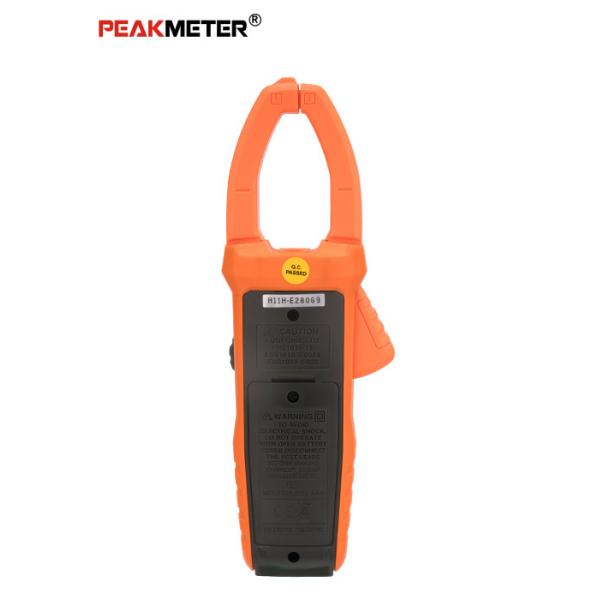

True RMS AC Digital Clamp Multi-Meter With NCV Detection , DC Voltage , Frequency And Resistance Tester

English User Manual:https://drive.google.com/open?id=1-b9HI6ZZRCnXuNrdu6M5S7uw-BrVVZ71

Features of True-RMS Digital Clamp Meter

• Display: LCD
• Operating height: Max. 2000m
• Max. display value: 6000 digit.
• Over range display: ‘0L’ or ‘-0L’.
• Automatic shutdown time: 10 minutes
• Power supply: 1.5V AAA battery × 3
• Overload protection throughout the range.
• Operating temperature: 18℃ ～ 28℃.
• Storage temperature: -10℃ ～ 50℃.
• Unit display: Function and electricity quantity unit display.
• Battery under-voltage indication: LCD display symbol
• Temperature coefficient: Less than 0.1×accuracy/℃.
• Polarity indication: Automatic indication, and ‘-’ indicates negative.
• Sampling time: About 3 times/second.,bargraph 10 times/second
• Max. voltage between measurement terminal and ground: 1000V DC or 1000V AC

Product Description of True-RMS Digital Clamp Meter

PM2028A is a True-RMS digital clamp meter, it is select measurement function and range automatically. This meter can be used to measure AC & DC voltage, AC current, frequency, resistance, continuity, capacitor, temperature, etc. It also has function of reading hold, backlight, automatic shutdown, NCV, etc.

• Display-6000 counts, function and electricity quantity unit display, backlight function provides user with light source for clear reading
• NCV-Non contact voltage detection, instrument could detect whether the lead being measured is > 90V AC Voltage, and instrument detects AC voltage, instrument buzzer will alarm and NCV alarm light will flash
