Specifications
Brand Name :
PEAKMETER
Model Number :
PM118C
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
150,000 Pcs Per Month
Delivery Time :
5-40 work days
Packaging Details :
Product Size 194mm*90mm*56mm Product Weight Approx. 380g
Display :
6000 Counts
Function 1 :
NCV and Live wire detection
Voltage measurement :
AC/DC 1000V
Function 2 :
Relative and VFD measurement
Current measurement :
AC/DC 10A
Function 3 :
Diode test
Function 4 :
Max and Min
Description

Manual and Auto range digital meter 1000V voltmeter AC DC digital multimeter MAX and MIN measurement

Features of Muti-function Digital Multimeter

  • Auto and Manual range, relative value measure, max/min value measurement
  • Data hold, back light, work light, auto power off, NCV and live wire detection
  • AC/DC voltage, AC/DC current, resistance, frequency, duty cycle, diode, capacitance measurement
  • Measuring temperature
　 Range Accuracy
DC Voltage 600mV/6V/60V/600V/1000V ±(0.5%+3)
AC Voltage 600mV/6V/60V/600V ±(0.8%+5)
1000V ±(1.0%+5)
DC Current 600uA/6mA/60mA/600mA ±(0.8%+3)
10A ±(1.2%+3)
AC Current 600uA/6mA/60mA/600mA ±(1.0%+3)
10A ±(1.5%+3)
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ ±(1.0%+3)
60MΩ ±(2.0%+3)
Frequency 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(0.5%+5)
Duty Cycle 1%~99% ±(3.0%+2)
Clamp DC Current 6A/600A ±(3.0%+10)

Clamp Shaped AC

Current

 6A/60A/600A ±(2.5%+5)

K-type Thermocouple

Temperature

 -40°C~1000°C ±(1.0%+2)
-40℉～1832℉
Feature
Display 6000 counts
NCV Detection √
Auto Range and Manual Range √
Relative Measurement √
VFD Measurement √
MAX/MIN Measurement √
Work Light √
Back Light √
Data Hold √
Diode √
Continuity √
Auto Power Off √
General
Power Supply 3*1.5V AAA Batteries
Size 193mm*90mm*54mm
Weight About 340g
Safety Rating EN61010-2-032,EN61010-2-030,CAT.Ⅲ1000V,CAT.Ⅳ600V

Product Description of Multi-function Digital Multimeter

This meter is a hand-held digital multi-meter with the function of displaying True RMS. It is a large-screen LCD unit with backlight and illumination light functions so that the user can easily recognize reading. It is equipped with the function of overload protection and the indicator of battery under voltage. Either for professional, factories, schools, enthusiasts or households, it is an ideal multi-functional meter.

  • Temperature measurement – The meter can measure ambient temperature and measure temperature with a thermocouple
  • Protective case – Integrated protective case to prevent damage to the body when the meter falls accidentally; Convenient Probe slot allows the probe to be carried with the instrument when not in use, making it difficult to lose.
  • Multi-function key, dial – The instrument has abundant usage functions, with simple keys and dials to make the functions clearly displayed in front of the user.

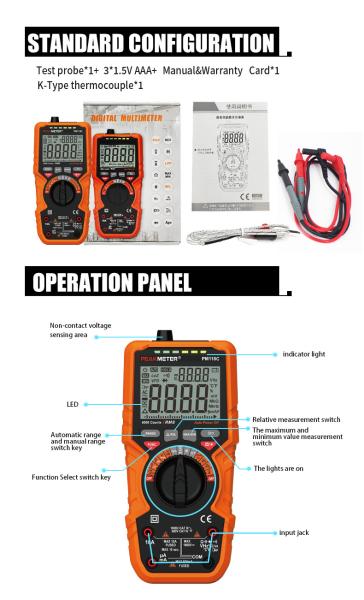

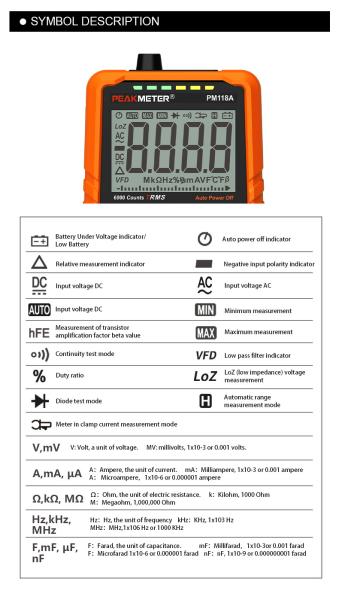

Detailed Images of Multi-function Digital Multimeter
