UL94 V-0 Glass Filled PEEK Rod Plastic High Strength For Electronics
UL94 V-0 Glass Filled PEEK Rod Plastic High Strength For Electronics
UL94 V-0 Glass Filled PEEK Rod Plastic High Strength For Electronics
UL94 V-0 Glass Filled PEEK Rod Plastic High Strength For Electronics
UL94 V-0 Glass Filled PEEK Rod Plastic High Strength For Electronics
UL94 V-0 Glass Filled PEEK Rod Plastic High Strength For Electronics
Specifications
Brand Name :
PRES
Model Number :
ESD 1130
Certification :
ROHS REACH
Place of Origin :
China
MOQ :
1KG
Price :
58USD-96USD per KG
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
250Tones per month
Packaging Details :
inside pp pearl cotton, outside wooden box
Product Name :
ESD PEEK Sheet
Features :
Chemical Resistant/High flow/High stiffness/High strength/low friction/semi crystalliine
Density :
1.4g/cm3
Tensile Strength break 23°C :
≥265MPa ISO 527
Application :
Aerospace, Automotive, Medical, Electronics, etc.
Color :
Black
Thickness :
6mm-120mm
Flame Retardant :
UL94 V-0
compressive Strength 3°C :
Up to 230℃ Mpa ISO640
Material :
PEEK, 10%-30% carbon fiber
Melting point :
343℃
Width :
600mm/1250mm
Description

wear-resistant anti-static PEEK rod

Antistatic PEEK rod is a kind of high-performance special engineering plastic plate.
It has excellent mechanical properties, high strength, good rigidity and wear resistance, and can be used for a long time in harsh working environments. At the same time, its high temperature resistance performance is remarkable, and it can maintain stable performance in high temperature environments. The continuous service temperature can reach about 260℃.
The outstanding feature of antistatic PEEK plate is that it has good antistatic performance, which can effectively prevent electrostatic accumulation and discharge, and avoid the hazards caused by static electricity, such as fire, explosion, and damage to electronic components. It is widely used in fields sensitive to static electricity such as electronics, semiconductors, aerospace, and healthcare. In addition, this plate also has the advantages of chemical resistance, flame retardancy, low smoke and non-toxicity, and is an ideal high-performance engineering material.

NO. Item no. Unit PEEK-1000 PEEK-CA30 PEEK-GF30
1 Density g/cm3 1.31 1.41 1.51
2 Water absorption
(23℃ in air)		 % 0.2 0.14 0.14
3 Tensile strength MPa 110 130 90
4 Tensile strain at break % 20 5 5
5 Compressive stress(at 2% nominal strain) MPa 57 97 81
6 Charov impact strength(unnotched) KJ/m2 No break 35 35
7 Charov impact strength(notched) KJ/m2 3.5 4 4
8 Tensile modulus of elasticity MPa 4400 7700 6300
9 Ball indentation hardness N/mm2 230 325 270
10 Rockwell hardness -- M105 M102 M99

Our Advantages:

1. Prompt delivery and consider services

2. Competitive price and high quality control

3. ISO9001:2008/QS9000/SGS approved

4. OEM&ODM accepted/ Cut Arbitrarily

5. Customers’ 2D or 3D drawings or samples are welcomed

6. 10 years experience focus on manufacturing PEEK sheet and Tube

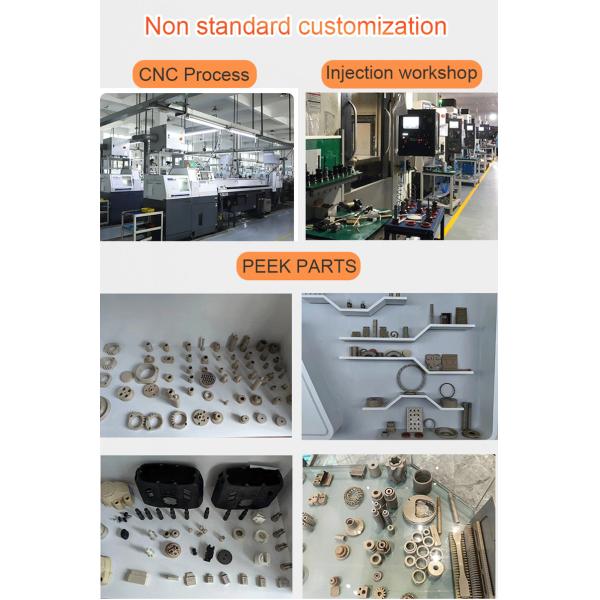

One stop PEEK service: From granual to shape,from shape to parts

Quality control in every steps

UL94 V-0 Glass Filled PEEK Rod Plastic High Strength For ElectronicsUL94 V-0 Glass Filled PEEK Rod Plastic High Strength For ElectronicsUL94 V-0 Glass Filled PEEK Rod Plastic High Strength For ElectronicsUL94 V-0 Glass Filled PEEK Rod Plastic High Strength For Electronics
