High Temperature Resistant Transparent PPSU Sheet Engineering Plastic
High Temperature Resistant Transparent PPSU Sheet Engineering Plastic
High Temperature Resistant Transparent PPSU Sheet Engineering Plastic
High Temperature Resistant Transparent PPSU Sheet Engineering Plastic
High Temperature Resistant Transparent PPSU Sheet Engineering Plastic
High Temperature Resistant Transparent PPSU Sheet Engineering Plastic
High Temperature Resistant Transparent PPSU Sheet Engineering Plastic
High Temperature Resistant Transparent PPSU Sheet Engineering Plastic
High Temperature Resistant Transparent PPSU Sheet Engineering Plastic
High Temperature Resistant Transparent PPSU Sheet Engineering Plastic
Specifications
Brand Name :
PRES
Model Number :
PRS-P3010
Certification :
ROHS REACH
Place of Origin :
China
MOQ :
1kg
Price :
18USD/KG
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5-8 working days
Packaging Details :
25KGS/Bag
Density :
1.29g/cm³
Shrinkage - Flow (3.18 mm) :
0.70 %
Water absorption (24 hr) :
0.37 %
Tensile modulus (3.18 mm) :
2340MPa
Tensile strength (3.18 mm) :
70.3 MPa
Bending modulus (3.18 mm) :
2340MPa
Bending strength (5.0% strain, 3.18mm) :
100 MPa
Notched impact strength of cantilever beam (3.18mm) :
690J/m
Glass transition temperature :
220°C
Description

High temperature resistant transparent PPSU sheet

PPSU board is a high-performance engineering plastic sheet. It has excellent high temperature resistance and can maintain stability over a wide temperature range. PPSU board has strong chemical corrosion resistance and can resist the erosion of various chemical substances. It has high strength, good toughness, and is not easily broken or deformed. At the same time, the board has good insulation and flame retardancy. Widely used in medical, food processing, electronics and other fields, such as the production of medical devices, food containers, electrical insulation components, etc. PPSU board is safe, reliable, and easy to process, making it an ideal engineering material choice.

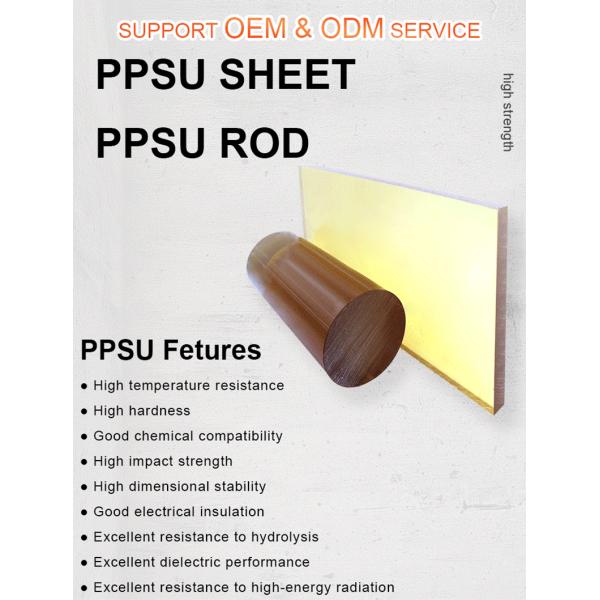

Characteristic:

1.Natural with high HDT/A of 196℃
2.High RTI of 180℃
3.Superior toughness and impact resistance strength with 690J/m
4.Exceptional long-term hydrolytic stability
5.Withstands over 1000 cycles of steam sterilization at 134℃
without any significant loss of properties
6.Inherently flame retardant and colorable

The Main specifications and Properties of PPSU

Typical Value Testing Method Unit F1150 F1250 F1350 M1150
Density Iso 1183 g/cm3 12.9 12.9 12.9 12.8
MoistureAbsorption,Equilibrium 23°C/50%r.h 1so 62 % 0.6 0.6 0.6 0.3
Mold shrinkage-Flow Iso 2577,294-4 % 0.9 0.9 0.9 0.9
HDT/A @l.8MPa 1so 75-1/-2 °C 196 196 196 185
Tensile strength Iso 527-1/-2 MPa 70 70 70 75
Tensile Modulus Iso 527-1/-2 MPa 2270 2270 2270 2690
TensileElongation(Yield) Iso 527-1/-2 % 7.8 7.8 7.8 7
Flexural strength I5o 178 MPa 105 105 105 105
Flexural Modulus IsO 178 MPa 2400 2400 2400 2760
Notched lzod impact ISO 18o/A KJ/m2 68 68 68 10
