Hydrolysis Resistance Glass Fiber Filled Peek Rod Sheet Plate 6mm-120mm Thickness
Hydrolysis Resistance Glass Fiber Filled Peek Rod Sheet Plate 6mm-120mm Thickness
Hydrolysis Resistance Glass Fiber Filled Peek Rod Sheet Plate 6mm-120mm Thickness
Hydrolysis Resistance Glass Fiber Filled Peek Rod Sheet Plate 6mm-120mm Thickness
Hydrolysis Resistance Glass Fiber Filled Peek Rod Sheet Plate 6mm-120mm Thickness
Hydrolysis Resistance Glass Fiber Filled Peek Rod Sheet Plate 6mm-120mm Thickness
Hydrolysis Resistance Glass Fiber Filled Peek Rod Sheet Plate 6mm-120mm Thickness
Hydrolysis Resistance Glass Fiber Filled Peek Rod Sheet Plate 6mm-120mm Thickness
Specifications
Brand Name :
PRES
Model Number :
PEEKGF30
Certification :
ROHS REACH
Place of Origin :
China
MOQ :
1KG
Price :
45USD-65USD
Payment Terms :
D/A, D/A, L/C, D/P
Supply Ability :
250Tone per month
Packaging Details :
Pearl cotton on the inside, wooden box on the outside
Size :
customization
Material :
PEEK+Glass Fiber
Type :
Sheet/plate
Color :
NC/Black/BG
Density :
1.51g/cm3
Thickness :
6mm-120mm
Flammability :
UL94 V-0
Description

PEEK Filed 30% Glass Fiber Advantage

Compared with unfilled PEEK,this 30% glass fiber reinforced PEEK material exhibits increased mechanical strength and high rigidity.Plus, improved creep strength and dimensional stability are delivered by the 30% glass fiber filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.PEEK5600GF30 is widely used in the buyer cases, which has a marked compressive strength requirement on the product designing.

PEEK Feature
* High temperature resistance
* Strong corrosion resistance
* Hydrolysis resistance; Peel resistance
* Self-lubricating; High strength
* Weather resistant Anti-radiation
* Working temperature(-80 ℃-+300 ℃)

PEEK Parameters

NO. Item no. Unit PEEK-1000 PEEK-CA30 PEEK-GF30
1 Density g/cm3 1.31 1.41 1.51
2 Water absorption
(23℃ in air)		 % 0.2 0.14 0.14
3 Tensile strength MPa 110 130 90
4 Tensile strain at break % 20 5 5
5 Compressive stress(at 2% nominal strain) MPa 57 97 81
6 Charov impact strength(unnotched) KJ/m2 No break 35 35
7 Charov impact strength(notched) KJ/m2 3.5 4 4
8 Tensile modulus of elasticity MPa 4400 7700 6300
9 Ball indentation hardness N/mm2 230 325 270
10 Rockwell hardness -- M105 M102 M99

Item Thick/Dia(mm) Width/Length(mm) Density (g/cm3) Color
PEEK resine sheet 6-120 620X1240 1.31 Natural, Black
PEEK resine rod 6-100 1000 1.31 Natural, Black
PEEK+GF Sheet 6-100 620x1240 1.51 Natural, Black
PEEK+GF Rod 10-50 1000 1.51 Natural, Black

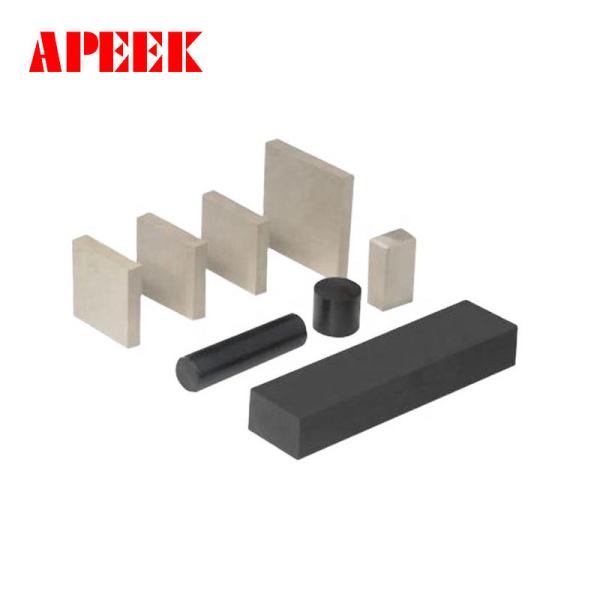

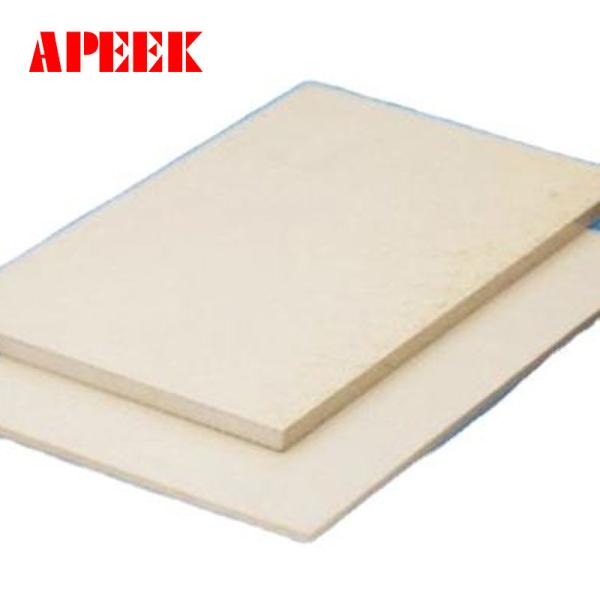

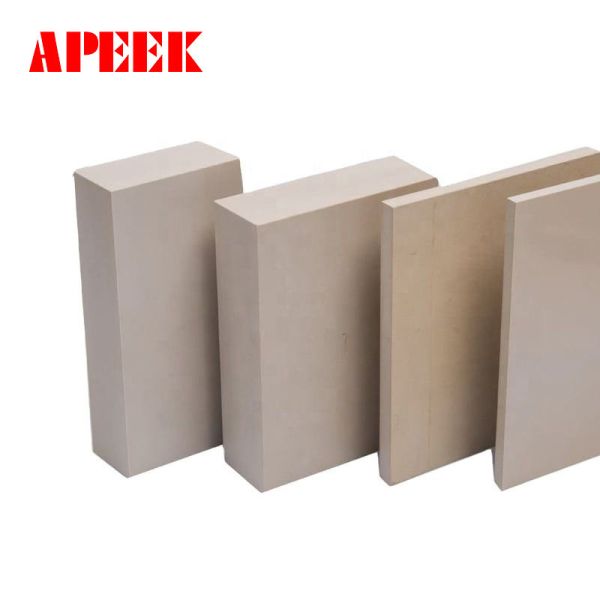

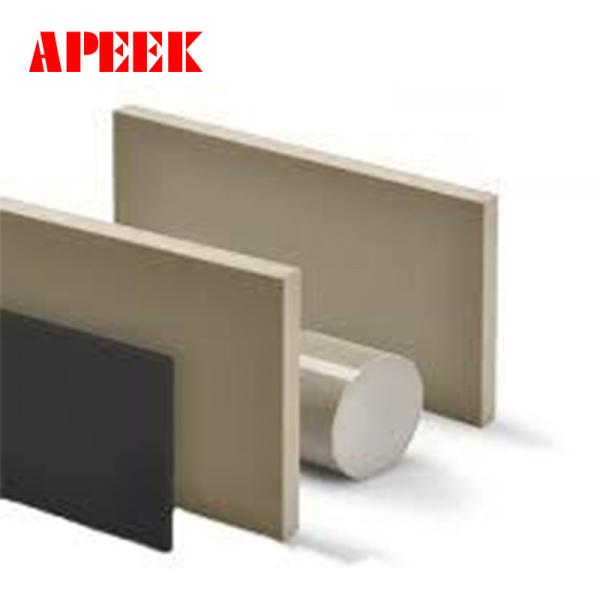

PEEK Images:

Hydrolysis Resistance Glass Fiber Filled Peek Rod Sheet Plate 6mm-120mm ThicknessHydrolysis Resistance Glass Fiber Filled Peek Rod Sheet Plate 6mm-120mm ThicknessHydrolysis Resistance Glass Fiber Filled Peek Rod Sheet Plate 6mm-120mm ThicknessHydrolysis Resistance Glass Fiber Filled Peek Rod Sheet Plate 6mm-120mm Thickness
