HQU Compact Pump In Wireline Overshot Alloy Steel Drilling Overshot
HQU Compact Pump In Wireline Overshot Alloy Steel Drilling Overshot
HQU Compact Pump In Wireline Overshot Alloy Steel Drilling Overshot
HQU Compact Pump In Wireline Overshot Alloy Steel Drilling Overshot
HQU Compact Pump In Wireline Overshot Alloy Steel Drilling Overshot
HQU Compact Pump In Wireline Overshot Alloy Steel Drilling Overshot
Specifications
Brand Name :
PEERCHEER
Model Number :
HQU
Place of Origin :
WuXi
Payment Terms :
T/T
Name :
HQU OVERSHOT
Model :
HQU
industry :
Drilling
Hole Diameter :
96.0mm
Core Diameter :
63.5mm
Material :
Alloy Steel
Price :
Negotiable
Certification :
ISO9001
Description

HQU COMPACT PUMP-IN WIRELINE OVERSHOT

PEERCHEER offers HQU quick pump-in overshot for use with HQU core barrel. HQU quick pump-in overshot provides significantly improved pump-in rates with dual pump-in lip-seals.In addition, HQU quick pump-in overshot incorporates the proven/reliable, patented Landing Indicator bushing as an optional bypass valve feature. HQU overshot is ideal for maximum productivity in underground or pump-in applications.

HQU Compact Pump In Wireline Overshot Alloy Steel Drilling Overshot

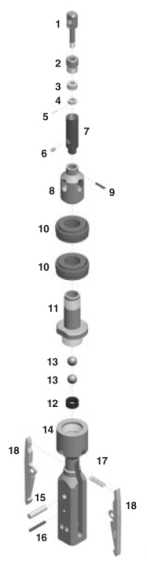

HQU quick pump-in overshot standard parts:

1-HQU Overshot Eye Bolt

2-HQU Overshot Cable Swivel Collar

3-HQU Overshot Thrust Bearing

4-HQU Overshot Castle Nut

5-HQU Overshot Cotter Pin

6-HQU Overshot Grease Fitting

7-HQU Overshot Cable Swivel Body

8-HQU Overshot Upper Body

9-HQU Overshot Pin

10-HQU Overshot Pump-In Lip Seal

11-HQU Overshot Seal Seat

12-HQU Overshot Indicator Bushing

13-HQU Overshot Ball

14-HQU Overshot Head

15-HQU Overshot Plain Pin

16-HQU Overshot Spring Pin

17-HQU Overshot Compression Spring

18-HQU Overshot Lifting Dog

HQU Nonimal Parameter mm Inches
HQU Hole Diameter(approx.) 96.0 3.780
HQU Core Diameter(approx.) 63.5 2.500
HQU Core Bit Set OD(approx.) 95.6 3.764
HQU Core Bit Set ID(approx.) 63.5 2.500
HQU Reaming Shell Set OD(approx.) 96.0 3.780

Our Services:

Ø Provide the technical design and solutions;

Ø Designing and manufacturing of non-standard equipment;

Ø Professional technical training and guidance on site according to the contract;

Ø Supply accessories at any time;

Ø Tele-technical consulting and services;

Ø Other special technical service according to client's requirements.

We specialized in producing of varies diamond drilling tools, such as impregnated/surface-set diamond core bits, diamond casing shoes, diamond rod shoes, reaming shells, TC core bits/casing shoes/TC rod shoes, PDC bits, Thin Wall Bits, core lifters, core lifter cases, core barrels, and kinds of drilling rigs etc.
